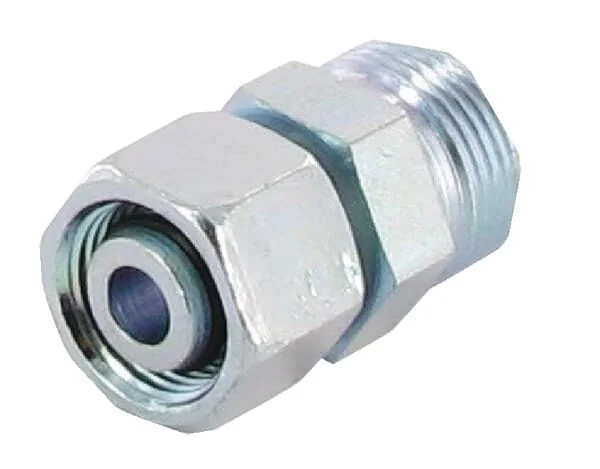

Dietzel - KOVO22L35L - Coupling 22l 35l

Dietzel - KOVO22L35L - Coupling 22l 35l

Dietzel - KOVO22L35L - Coupling 22l 35l

Dietzel - KOVO22L35L - Coupling 22l 35l

Number of products

In stock - ready to ship

Order now for delivery between 22 May and 26 May

Free shipping on orders over €60

Pay Securely with

Dietzel - KOVO22L35L - Coupling 22l 35l

Dietzel - KOVO22L35L - Coupling 22l 35l

€35.85

(Excl. VAT)

Price

(Excl. VAT)

€35.85

Number of products

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

22L 35L

Includes

Body Union nuts Sealing cone with O-ring

Cone angle

24 °

DIN standard

2401

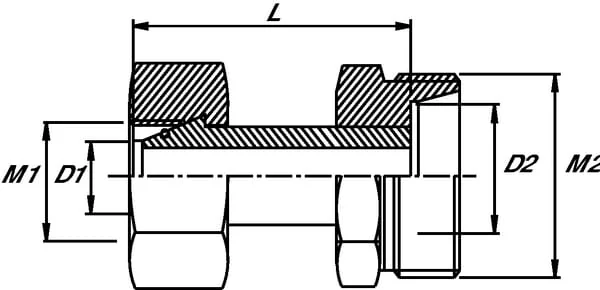

LTotal length

52 mm

Surface treatment

Zinc-plated

Connection 2, type

Thread

Connection no 1 type

Swivel nut

Max working pressure

160 BAR

D2Connection 2, diameter

35 mm

Connection 2, thread type

Metric

Connection 2, thread pitch

2.00 mm

D1Connection no 1 diameter

22 mm

Connection no 1 thread type

Metric

Connection no 1 thread pitch

2.00 mm

M2Connection 2, thread diameter

M45

Connection 2, type - male/female

Male

M1Connection no 1 thread diameter

M30

Connection no 1 type - male/female

Female

Manufacturer

Dietzel
