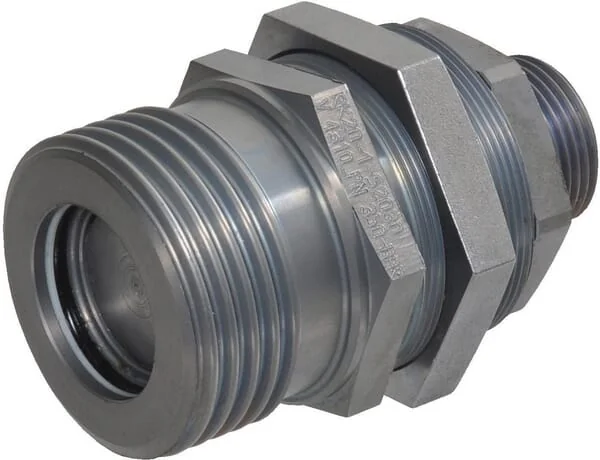

DNP - RSF20L36 - Female Coupling 28L

DNP - RSF20L36 - Female Coupling 28L

DNP - RSF20L36 - Female Coupling 28L

DNP - RSF20L36 - Female Coupling 28L

DNP - RSF20L36 - Female Coupling 28L

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

DNP - RSF20L36 - Female Coupling 28L

DNP - RSF20L36 - Female Coupling 28L

€53.60

(Excl. VAT)

Price

(Excl. VAT)

€53.60

Number of products

Product Description

Screw coupling with special flat valve Low leakage Can be coupled under pressure

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Series

28L

Benefits

Very high operating pressure No air pockets during coupling Manual coupling at up to 20 bar

Material

Steel

Body size

3/4 Inch

Properties

Very robust Resistant to high-frequency, large pressure fluctuations Utmost corrosion resistance

Total length

92 mm

Burst pressure

1000 BAR

Technical info

Coupling must be screwed as tight as possible

Application range

Construction machines Vehicle construction Mineral oil-based fluids

Surface treatment

White passivated

Connection 2, type

Thread

Flow rate at 2 bar

120 l/min

Connection no 1 type

Thread

Max working pressure

350 BAR

Max working temperature

100 °C

Min. working temperature

-20 °C

Connection 2, thread type

Metric

Connectable under pressure

Yes

Connection 2, thread pitch

2.00 mm

Connection 2, thread diameter

M36

Connection no 1 thread length

14 mm

Connection no 1 type - male/female

Male

Manufacturer

DNP
