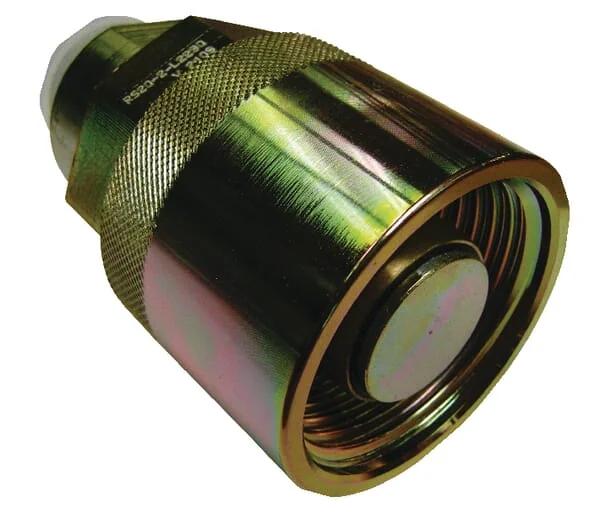

DNP - RSM20S30 - Hydraulic Connector 20S

DNP - RSM20S30 - Hydraulic Connector 20S

€57.50

(Excl. VAT)

Price

(Excl. VAT)

€57.50

Number of products

Product Description

Screw coupling with special flat valve Low leakage Can be coupled under pressure

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Series

20S

Benefits

Very high operating pressure No air pockets during coupling Manual coupling at up to 20 bar

Properties

Very robust Resistant to high-frequency, large pressure fluctuations Utmost corrosion resistance RS-M20 and RS-M25 with holes for hook spanner in the screw-on sleeve

L2Total length

109 mm

Technical info

Coupling must be screwed as tight as possible

Working pressure

200 BAR

Application range

Construction machines Vehicle construction Mineral oil-based fluids

Surface treatment

White passivated

Flow rate at 2 bar

120 l/min

Connection no 1 type

Thread

Max working pressure

300 BAR

L3Connection 2, length

16 mm

Max working temperature

100 °C

Min. working temperature

-20 °C

Connectable under pressure

Yes

Connection no 1 thread pitch

2.00 mm

AConnection 2, thread diameter

3/4 Inch

D1Connection no 1 thread diameter

M30

Manufacturer

DNP
