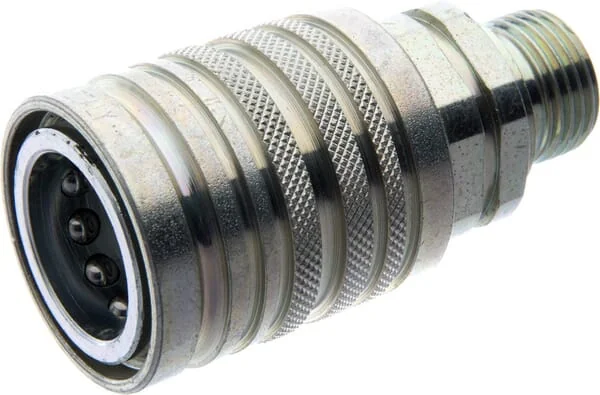

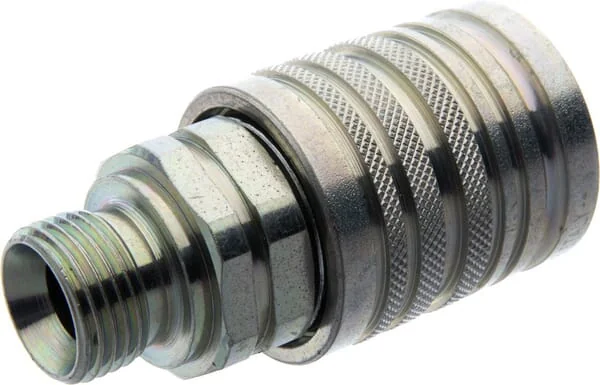

DNP - SKPF12A08 - Female Coupling 1/2-1/2 BSP

DNP - SKPF12A08 - Female Coupling 1/2-1/2 BSP

€10.63

(Excl. VAT)

Price

(Excl. VAT)

€10.63

Number of products

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Material

Steel

Body size

1/2 Inch

Size code

BG 3

Properties

Agricultural standard coupling Push-pull principle Breakaway function Locks on both sides Axial actuation of locking sleeve in both directions (double acting)

ISO standard

7241-1-A

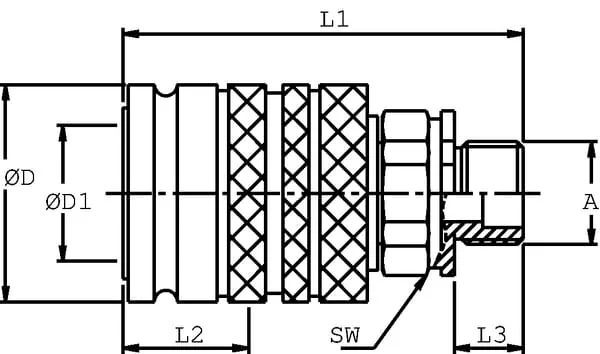

Total length

70 mm

Seal material

Nitrile rubber [NBR] Teflon (PTFE)

Outside diameter

38 mm

Working pressure

250 BAR

Application range

For universal use Agricultural machines Municipal services technology Mineral oil-based fluids

Surface treatment

White passivated

Connection 2, type

Thread

Connection no 1 type

Quick coupling

Max working temperature

100 °C

Connection no 1 diameter

23,8 mm

Min. working temperature

-30 °C

Connection 2, thread type

BSP

Connectable under pressure

No

Connection 2, thread diameter

1/2 Inch

Connection 2, threads per inch

14

Connection no 1 type - male/female

Male

Manufacturer

DNP
