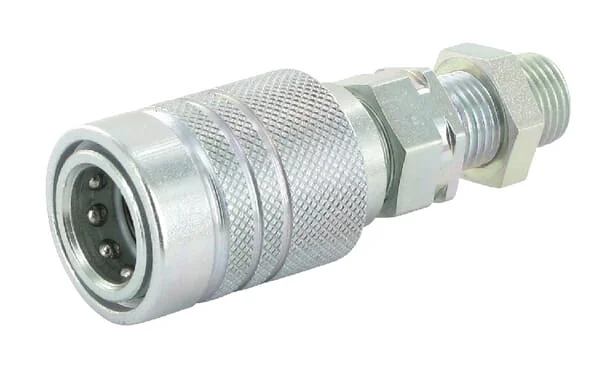

DNP - SKPF12N16 - DNP Coupling Housing 1/2-M16x1.5-10L

DNP - SKPF12N16 - DNP Coupling Housing 1/2-M16x1.5-10L

DNP - SKPF12N16 - DNP Coupling Housing 1/2-M16x1.5-10L

DNP - SKPF12N16 - DNP Coupling Housing 1/2-M16x1.5-10L

DNP - SKPF12N16 - DNP Coupling Housing 1/2-M16x1.5-10L

Number of products

In stock - ready to ship

Order now for delivery between 19 May and 22 May

Free shipping on orders over €60

Pay Securely with

DNP - SKPF12N16 - DNP Coupling Housing 1/2-M16x1.5-10L

DNP - SKPF12N16 - DNP Coupling Housing 1/2-M16x1.5-10L

€11.04

(Excl. VAT)

Price

(Excl. VAT)

€11.04

Number of products

Product Description

Application range: For universal use Agricultural machines Municipal services technology Mineral oil-based fluids Properties: Agricultural standard coupling Push-pull principle Breakaway fu

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Material

Steel

Size code

BG 3

Properties

Agricultural standard coupling Push-pull principle Breakaway function Locks on both sides Axial actuation of locking sleeve in both directions (double acting)

ISO standard

7241-1-A

Total length

85 mm

Seal material

Nitrile rubber [NBR] Teflon (PTFE)

Long description

Application range: For universal use Agricultural machines Municipal services technology Mineral oil-based fluids Properties: Agricultural standard coupling Push-pull principle Breakaway fu

Outside diameter

38 mm

Working pressure

250 BAR

Application range

For universal use Agricultural machines Municipal services technology Mineral oil-based fluids

Surface treatment

White passivated

Connection 2, type

Thread

Connection no 1 type

Quick coupling

Connection 2, diameter

10 mm

Max working temperature

100 °C

Connection no 1 diameter

20,6 mm

Min. working temperature

-30 °C

Connection 2, thread type

Metric

Connectable under pressure

No

Connection 2, thread pitch

1.50 mm

Connection 2, thread diameter

M16

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Female

Manufacturer

DNP
