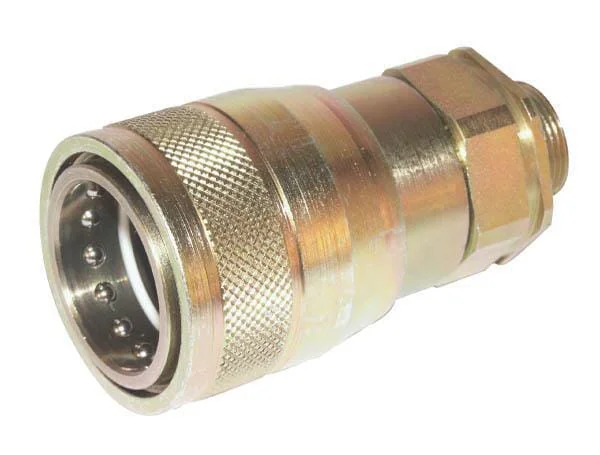

DNP - SKPF25L26 - DNP Coupling Housing 1" - M26x1.5-18L
DNP - SKPF25L26 - DNP Coupling Housing 1" - M26x1.5-18L
DNP - SKPF25L26 - DNP Coupling Housing 1" - M26x1.5-18L
DNP - SKPF25L26 - DNP Coupling Housing 1" - M26x1.5-18L
DNP - SKPF25L26 - DNP Coupling Housing 1" - M26x1.5-18L
DNP - SKPF25L26 - DNP Coupling Housing 1" - M26x1.5-18L

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping on orders over €60

Pay Securely with

DNP - SKPF25L26 - DNP Coupling Housing 1" - M26x1.5-18L

DNP - SKPF25L26 - DNP Coupling Housing 1" - M26x1.5-18L

€41.25

(Excl. VAT)

Price

(Excl. VAT)

€41.25

DNP
Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand
DNP
Unit
Each
Shape
Straight - 2 connection sides
Size code
BG 6
Properties
Agricultural standard coupling Push-pull principle Breakaway function Locks on both sides Axial actuation of locking sleeve in both directions (double acting)
ISO standard
7241-1-A
Total length
103 mm
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
Outside diameter
54 mm
Working pressure
250 BAR
Application range
For universal use Agricultural machines Municipal services technology Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Connection no 1 type
Quick coupling
Interchangeable with
Faster CPV Faster CNV Faster ANV
Connection 2, diameter
18 mm
Max working temperature
100 °C
Connection no 1 diameter
34,3 mm
Min. working temperature
-30 °C
Connection 2, thread type
Metric
Connectable under pressure
No
Connection 2, thread pitch
1.50 mm
Connection 2, thread diameter
M26
Connection no 1 type - male/female
Male
Manufacturer
DNP
