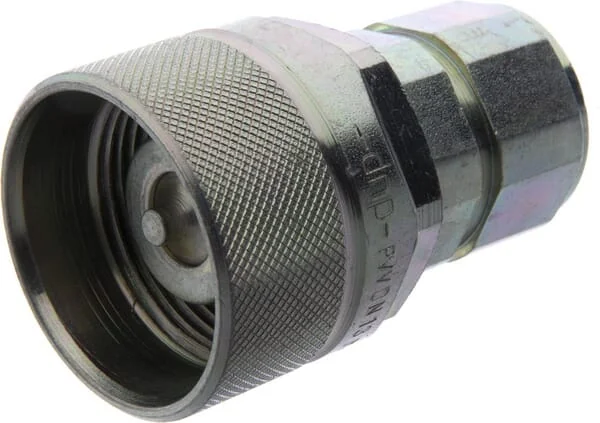

DNP - SKSM12D22 - Hydraulic Coupling

DNP - SKSM12D22 - Hydraulic Coupling

DNP - SKSM12D22 - Hydraulic Coupling

DNP - SKSM12D22 - Hydraulic Coupling

DNP - SKSM12D22 - Hydraulic Coupling

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

DNP - SKSM12D22 - Hydraulic Coupling

DNP - SKSM12D22 - Hydraulic Coupling

€10.02

(Excl. VAT)

Price

(Excl. VAT)

€10.02

Number of products

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Benefits

High operating pressure Prevents accidental release caused by vibration

Properties

Robust Low level of pressure loss Locks on both sides

ISO standard

14541

Seal material

Nitrile rubber [NBR] Teflon (PTFE)

L1Total length

66 mm

Technical info

Coupling must be screwed as tight as possible

Working pressure

400 BAR

Application range

Construction machines Mineral oil-based fluids

Connection 2, type

Thread

Flow rate at 2 bar

80 l/min

Connection no 1 type

Quick coupling

Connection 2, diameter

42 mm

Max working temperature

100 °C

Min. working temperature

-30 °C

Connection 2, thread type

Metric

Connection 2, thread pitch

1.50 mm

D1Connection no 1 diameter

22 mm

Connection no 1 thread type

Metric

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

M22

L3Connection 2, thread length

15 mm

SWConnection no 1 wrench size

36.0 mm

Connection no 1 thread diameter

M36

Connection 2, type - male/female

Female

Connection no 1 type - male/female

Male

Manufacturer

DNP
