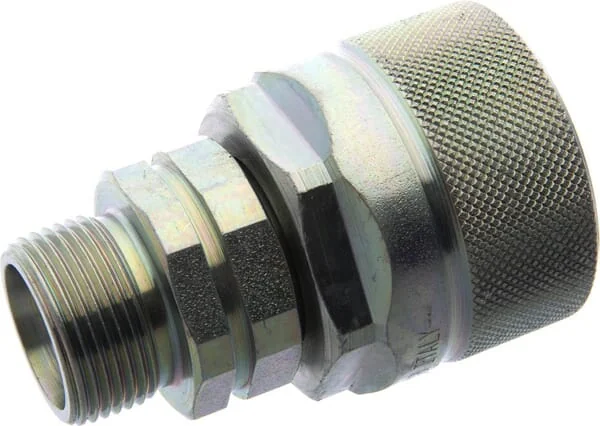

DNP - SKSM12S24 - Hydraulic Coupling

DNP - SKSM12S24 - Hydraulic Coupling

DNP - SKSM12S24 - Hydraulic Coupling

DNP - SKSM12S24 - Hydraulic Coupling

DNP - SKSM12S24 - Hydraulic Coupling

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

DNP - SKSM12S24 - Hydraulic Coupling

DNP - SKSM12S24 - Hydraulic Coupling

€10.25

(Excl. VAT)

Price

(Excl. VAT)

€10.25

Number of products

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Series

16S

Benefits

High operating pressure Prevents accidental release caused by vibration

Material

Steel

Body size

1/2 Inch

Properties

Robust Low level of pressure loss Locks on both sides

ISO standard

14541

Total length

54 mm

Pipe diameter

12 mm

Seal material

Nitrile rubber [NBR] Teflon (PTFE)

Technical info

Coupling must be screwed as tight as possible

Outside diameter

42 mm

Application range

Construction machines Mineral oil-based fluids

Surface treatment

White passivated

Connection 2, type

Thread

Flow rate at 2 bar

80 l/min

Connection no 1 type

Thread

Max working pressure

400 BAR

Max working temperature

100 °C

Connection no 1 diameter

22 mm

Min. working temperature

-30 °C

Connectable under pressure

Yes

Connection 2, thread pitch

1.50 mm

Connection 2, thread length

26 mm

Connection no 1 wrench size

36.0 mm

Connection 2, thread diameter

M24

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Female

Manufacturer

DNP
