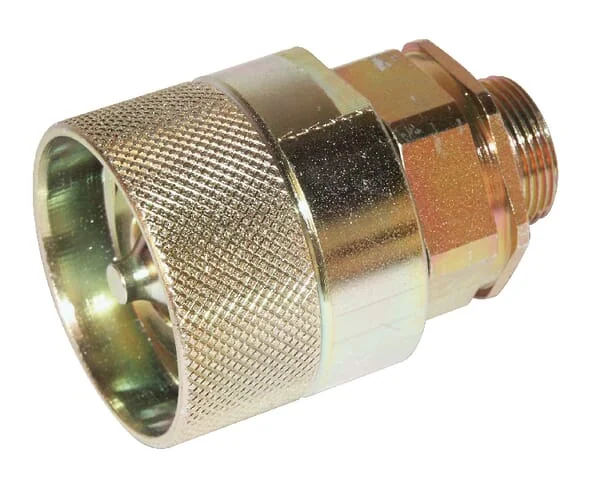

DNP - SKSM25L30 - Hydraulic Coupling

DNP - SKSM25L30 - Hydraulic Coupling

DNP - SKSM25L30 - Hydraulic Coupling

DNP - SKSM25L30 - Hydraulic Coupling

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

DNP - SKSM25L30 - Hydraulic Coupling

DNP - SKSM25L30 - Hydraulic Coupling

€24.36

(Excl. VAT)

Price

(Excl. VAT)

€24.36

Number of products

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Series

22L

Benefits

High operating pressure Prevents accidental release caused by vibration

Material

Steel

Body size

1 Inch

Properties

Robust Low level of pressure loss Locks on both sides

ISO standard

14541

Total length

71 mm

Pipe diameter

25 mm

Seal material

Nitrile rubber [NBR] Teflon (PTFE)

Technical info

Coupling must be screwed as tight as possible

Outside diameter

55 mm

Application range

Construction machines Mineral oil-based fluids

Surface treatment

White passivated

Connection 2, type

Thread

Flow rate at 2 bar

160 l/min

Connection no 1 type

Thread

Max working pressure

300 BAR

Max working temperature

100 °C

Connection no 1 diameter

35 mm

Min. working temperature

-30 °C

Connectable under pressure

Yes

Connection 2, thread pitch

2.00 mm

Connection 2, thread length

14 mm

Connection no 1 wrench size

50.0 mm

Connection 2, thread diameter

M30

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Female

Manufacturer

DNP

Similar items you might like

DNP - SKSM25L36 - Hydraulic Coupling
DNP
€24.54
DNP - SKSM25L45 - Hydraulic Coupling
DNP
€35.03
DNP - SKSM25N26 - Hydraulic Coupling
DNP
€26.87
DNP - SKSM25N30 - Hydraulic Coupling
DNP
€28.03
DNP - SKSM25N36 - Hydraulic Coupling
DNP
€26.87
DNP - SKSM25S30 - Hydraulic Coupling
DNP
€24.54
DNP - SKSM25S36 - Hydraulic Coupling DN-25-S M36-25S
DNP
€24.54
DNP - SKSM25S42 - Hydraulic Coupling
DNP
€24.54
DNP - SKSM25S52 - Hydraulic Coupling
DNP
€37.36

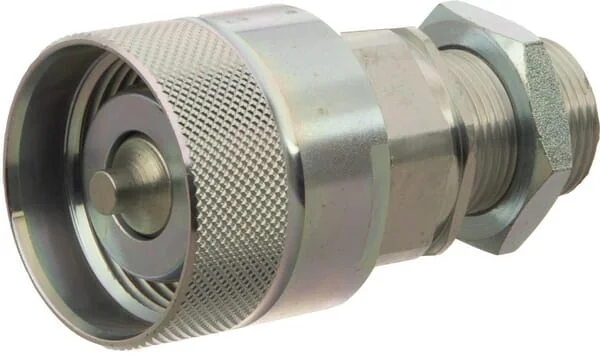

DNP - SKSM25T30 - Hydraulic Coupling
