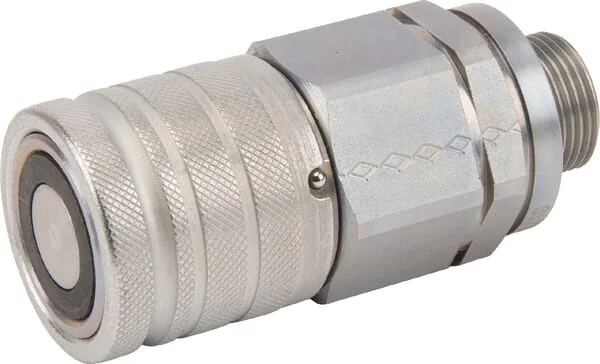

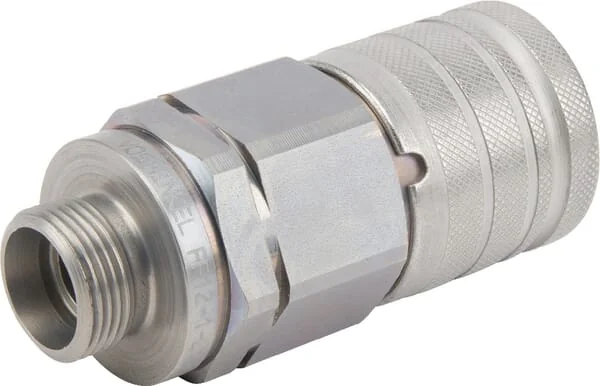

DNP - SKVF12L22 - QR Coupling Female
DNP - SKVF12L22 - QR Coupling Female
DNP - SKVF12L22 - QR Coupling Female
DNP - SKVF12L22 - QR Coupling Female
DNP - SKVF12L22 - QR Coupling Female

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

DNP - SKVF12L22 - QR Coupling Female

DNP - SKVF12L22 - QR Coupling Female

€25.67

(Excl. VAT)

Price

(Excl. VAT)

€25.67

Product Description

Application range: Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids Benefits: User-friendly Low leakage No air pockets
DNP
Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand
DNP
Unit
Each
Shape
Straight - 2 connection sides
Details
One-handed coupling With special flat valve Protected against accidental decoupling
Benefits
User-friendly Low leakage No air pockets during coupling
Material
Steel
Body size
12,5 mm
Size code
BG 3
Properties
Locks on both sides Utmost corrosion resistance
ISO standard
16028

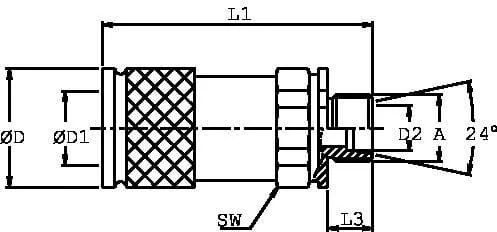

Total length
83 mm
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
Long description
Application range: Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids Benefits: User-friendly Low leakage No air pockets
Outside diameter
38 mm
Working pressure
250 BAR
Application range
Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Quick coupling
Connection 2, diameter
15 mm
Max working temperature
100 °C
Connection no 1 diameter
24,5 mm
Min. working temperature
-30 °C
Connection 2, thread type
Metric
Connectable under pressure
No
Connection 2, thread pitch
1.50 mm
Connection 2, thread diameter
M22
Connection no 1 type - male/female
Male
Manufacturer
DNP

Similar items you might like

  • DNP

    DNP - SKVF12N18 - DNP Coupling Housing Shot 1/2 M18-12L

    DNP

    €28.59

  • DNP

    DNP - SKVF12T24 - DNP Coupling Housing Shot 1/2 M24-16S

    DNP

    €28.59

  • DNP

    DNP - SKVF12T30 - DNP Coupling Housing Shot 1/2 M30-20S

    DNP

    €28.59

  • DNP

    DNP - SKVF16C12 - QR Coupling Female 5/8" - 3/4" BSP

    DNP

    €34.60

  • DNP

    DNP - SKVF19C12 - QR Coupling Female 3/4" - 3/4" BSP

    DNP

    €49.31

  • DNP

    DNP - SKVF19C16 - QR Coupling Female 3/4" - 1" BSP

    DNP

    €51.69

  • DNP

    DNP - SKVF25C20 - DNP Quick Coupling Female 1 - 1 1/4" BSP

    DNP

    €85.87

  • DNP

    DNP - SKVM06C04 - DNP Push-In Nipple 1/4 - 1/4 BSP

    DNP

    €10.02

  • DNP

    DNP - SKVM10C06 - DNP Push-In Nipple Male Bi.Dr. 3/8 3/8" BSP

    DNP

    €9.45

  • DNP

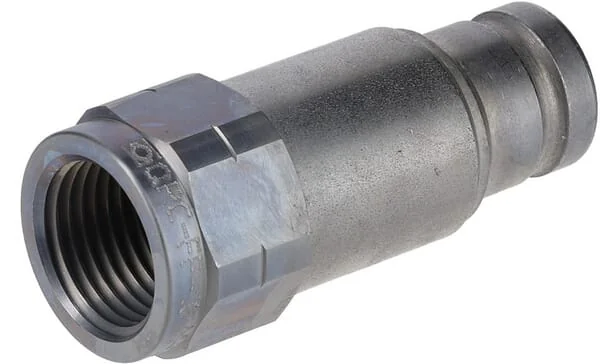

    DNP - SKVM10C08 - DNP Push-In Nipple Male 3/8 1/2" BSP
