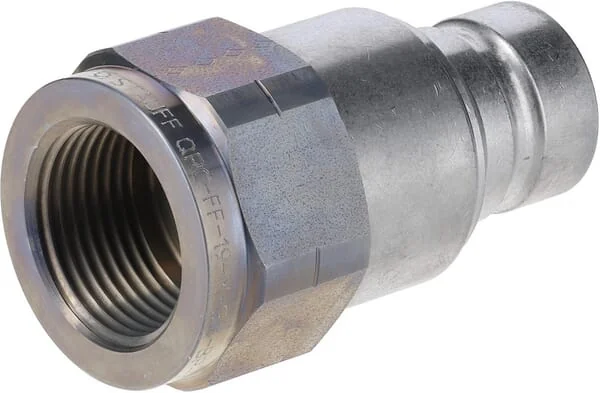

DNP - SKVM19C16 - QR Coupling Male 3/4 - 1" BSP

DNP - SKVM19C16 - QR Coupling Male 3/4 - 1" BSP

DNP - SKVM19C16 - QR Coupling Male 3/4 - 1" BSP

DNP - SKVM19C16 - QR Coupling Male 3/4 - 1" BSP

Number of products

In stock - ready to ship

Order now for delivery between 19 May and 22 May

Free shipping on orders over €60

Pay Securely with

DNP - SKVM19C16 - QR Coupling Male 3/4 - 1" BSP

DNP - SKVM19C16 - QR Coupling Male 3/4 - 1" BSP

€36.56

(Excl. VAT)

Price

(Excl. VAT)

€36.56

Number of products

DNP

Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 470 genuine Dnp spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Details

One-handed coupling With special flat valve

Benefits

User-friendly Low leakage No air pockets during coupling

Material

Steel

Body size

3/4 Inch

Size code

BG 6

Properties

Locks on both sides Utmost corrosion resistance

ISO standard

16028

Seal material

Nitrile rubber [NBR] Teflon (PTFE)

L1Total length

84 mm

Application range

Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Flow rate at 2 bar

170 l/min

Connection no 1 type

Quick coupling

Max working temperature

100 °C

Min. working temperature

-30 °C

Connection 2, thread type

BSP

Connectable under pressure

No

ØD1Connection no 1 diameter

29,9 mm

Connection 2, thread diameter

1 Inch

Connection 2, threads per inch

11

Connection 2, type - male/female

Female

Connection no 1 type - male/female

Male

Manufacturer

DNP
