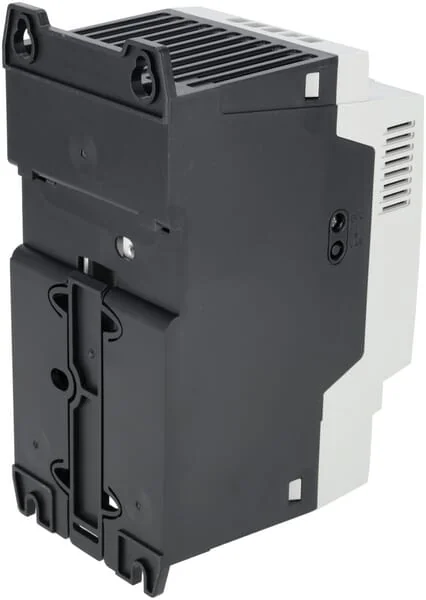

Eaton - DC1345D8FBA20CE1 - Frequency Controller
Eaton - DC1345D8FBA20CE1 - Frequency Controller
Eaton - DC1345D8FBA20CE1 - Frequency Controller
Eaton - DC1345D8FBA20CE1 - Frequency Controller
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Eaton - DC1345D8FBA20CE1 - Frequency Controller

Eaton - DC1345D8FBA20CE1 - Frequency Controller

€634.97

(Excl. VAT)

Price

(Excl. VAT)

€634.97

Eaton
Eaton specializes in hydraulic systems, power transmission, and control technologies for agricultural machinery. The brand provides components like valves, pumps, and hoses used in tractors and harvesting equipment. Its solutions enhance efficiency and reliability in demanding farming and forestry operations. Shop more than 585 genuine Eaton spare parts.

Product Details

Brand
Eaton
Unit
Each
Depth
152 mm
Width
107 mm
Height
231 mm
Mains voltage
380.0-480.0 V
Mains frequency
50 Hz60 Hz
Insulation class
20
Max. Current (A)
5.8 A
Protection class
IP20
Max. motor rating
2.2 kW
Power consumption
101,2 VA
Type of converter
U converter
With PC connection
Yes
Max. output voltage
500 V
With control element
Yes
Max. output frequency
500 Hz
Output Frequency (Hz)
50/60 Hz
Number of phases input
3
With optical interface
No
Manufacturer Product ID
185752
Number of phases output
3
Number of digital inputs
4
Primary power supply (V)
400V
Number of analogue inputs
2
Number of digital outputs
1
Nominal output current I2N
5,8 A
Number of analogue outputs
1
Number of HW-interfaces USB
0
Supporting protocol for ASI
No
Supporting protocol for CAN
Yes
Supporting protocol for KNX
No
Supporting protocol for LON
No
Suitable for original number
DC1-345D8FB-A20CE1
4-quadrant operation possible
Yes
Number of HW-interfaces other
0
Number of interfaces PROFINET
0
Integrated breaking resistance
Yes
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Supporting protocol for BACnet
No
Supporting protocol for Modbus
Yes
Supporting protocol for SERCOS
No
Supporting protocol for TCP/IP
No
Supporting protocol for SUCONET
No
Number of HW-interfaces parallel
0
Supporting protocol for INTERBUS
No
Supporting protocol for PROFIBUS
No
Supporting protocol for DeviceNet
No
Supporting protocol for PROFIsafe
No
Number of HW-interfaces serial TTY
0
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for Data-Highway
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for INTERBUS-Safety
No
Application in industrial area permitted
Yes
Relative symmetric net voltage tolerance
10 %
Supporting protocol for DeviceNet Safety
No
Supporting protocol for other bus systems
Yes
Relative symmetric net frequency tolerance
10 %
Number of HW-interfaces industrial Ethernet
0
Supporting protocol for Foundation Fieldbus
No
Max. output at linear load at rated output voltage
2,2 kA
Supporting protocol for AS-Interface Safety at Work
No
Max. output at quadratic load at rated output voltage
2,2 kA
Application in domestic- and commercial area permitted
Yes
Manufacturer
Eaton

Similar items you might like

  • Eaton

    Eaton - DILA22AC - Contactor With Forced Operation Contact

    Eaton

    €43.97

  • Eaton

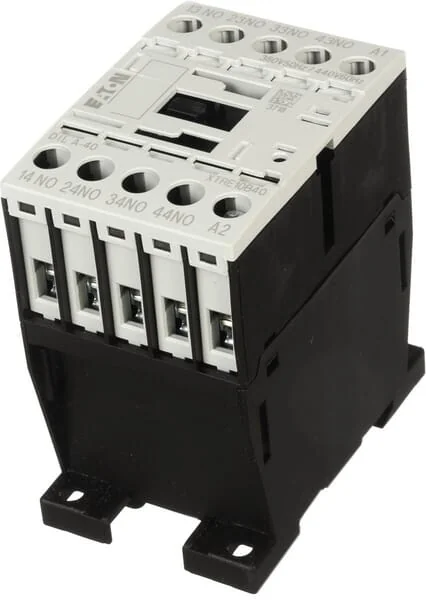

    Eaton - DILA40380440VAC - Contactor Relay

    Eaton

    €46.34

  • Eaton

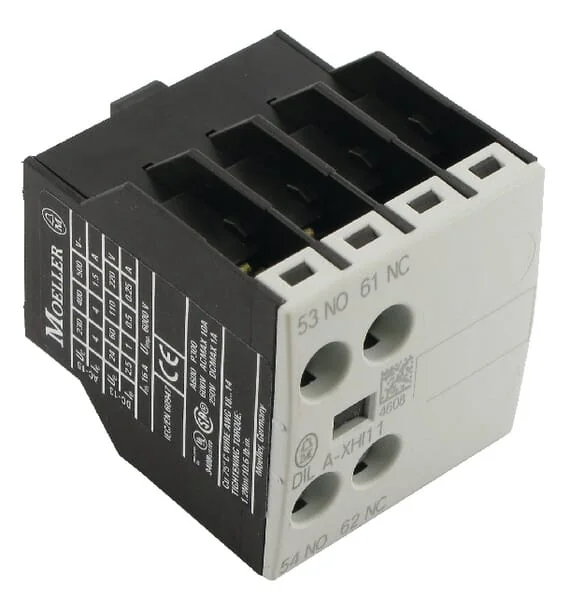

    Eaton - DILAXHI11 - Auxiliary Contact Module 1NO/1NC
