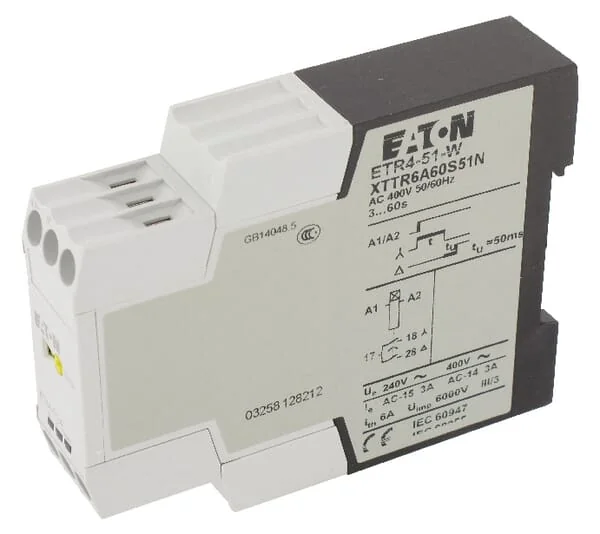

Eaton - ETR451W400VAC - Star-Delta Timing Relay
Eaton - ETR451W400VAC - Star-Delta Timing Relay
Eaton - ETR451W400VAC - Star-Delta Timing Relay
Eaton - ETR451W400VAC - Star-Delta Timing Relay

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Eaton - ETR451W400VAC - Star-Delta Timing Relay

Eaton - ETR451W400VAC - Star-Delta Timing Relay

€112.60

(Excl. VAT)

Price

(Excl. VAT)

€112.60

Eaton
Eaton specializes in hydraulic systems, power transmission, and control technologies for agricultural machinery. The brand provides components like valves, pumps, and hoses used in tractors and harvesting equipment. Its solutions enhance efficiency and reliability in demanding farming and forestry operations. Shop more than 585 genuine Eaton spare parts.

Product Details

Brand
Eaton
Unit
Each
Depth
103 mm
Width
23 mm
Height
83 mm
Current
6 A
Time range
3.0-60.0 s
Current Type
AC
Voltage coil
400 V
Repeatability
0.5 %
Rated load AC1
2500 W
Nominal current
3 A
Rated load AC15
1250 W
Max. voltage (V)
440 V
Protection class
IP20
Number of contacts
1
Recovery time (ms)
70 ms
Function star-delta
Yes
Complete with socket
No
Specified time ranges
3...60sec
Function pulse shaping
No
Manufacturer Product ID
031885
Minimum control impulse
50 ms
Remote operation possible
No
With semiconductor output
No
Voltage type for actuating
AC
Suitable for remote control
No
Type of electric connection
Screw connection
Function delay-on energization
No
Function delay on de-energization
No
Single phase motor rating (230V AC)
0,55 kW
Pluggable on auxiliary contact block
No
Outputs, reversible delayed/undelayed
No
Rated control supply voltage Us at DC
0.0-0.0 V
Function floating contact on energization
No
Rated control supply voltage Us at AC 50HZ
400.0-400.0 V
Rated control supply voltage Us at AC 60HZ
400.0-400.0 V
Function floating contact on de-energization
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
Suitable for DIN rail (top hat rail) mounting
Yes
Number of outputs, delayed, change-over contact
0
Number of outputs, delayed, normally open contact
1
Number of outputs, undelayed, change-over contact
0
Function flashing, starting with pulse, fixed time
No
Number of outputs, undelayed, normally open contact
1
Manufacturer
Eaton
