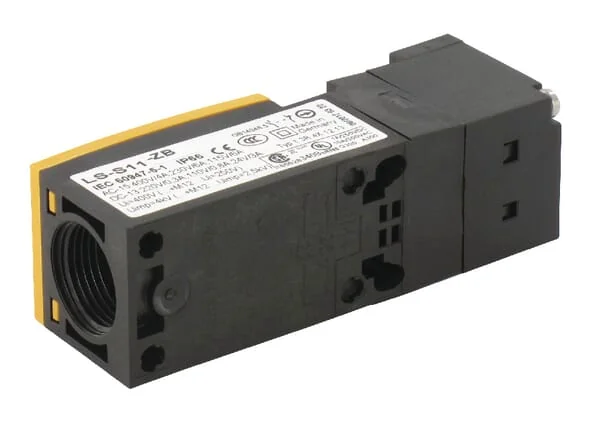

Eaton - LSS11ZB - Eaton Safety Position Switch
Eaton - LSS11ZB - Eaton Safety Position Switch
Eaton - LSS11ZB - Eaton Safety Position Switch
Eaton - LSS11ZB - Eaton Safety Position Switch

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Eaton - LSS11ZB - Eaton Safety Position Switch

Eaton - LSS11ZB - Eaton Safety Position Switch

€60.59

(Excl. VAT)

Price

(Excl. VAT)

€60.59

Eaton
Eaton specializes in hydraulic systems, power transmission, and control technologies for agricultural machinery. The brand provides components like valves, pumps, and hoses used in tractors and harvesting equipment. Its solutions enhance efficiency and reliability in demanding farming and forestry operations. Shop more than 585 genuine Eaton spare parts.

Product Details

Brand
Eaton
Unit
Each
Cable entry
M20
Width sensor
30 mm
Forced opening
Yes
Diameter sensor
0 mm
Height of sensor
96 mm
Insulation class
66
Length of sensor
33,4 mm
Material housing
Plastic
Output electronic
No
Type of interface
None
Switching function
Slow-action switch
Number of NC contacts
1
Number of NO contacts
1
With status indication
No
Manufacturer Product ID
106876
Construction type housing
Cuboid
Terminal capacities (mm2)
2,5 mm²
Switching function latching
No
Type of electric connection
Cable entry metrical
Suitable for safety functions
Yes
Switching capacity (AC-15 24V)
10 A
Switching capacity (DC-13 24V)
10 A
Switching capacity (AC-15 115V)
6 A
Switching capacity (AC-15 400V)
6 A
Switching capacity (DC-13 110V)
1 A
Switching capacity (DC-13 220V)
0,5 A
Explosion safety category for gas
None
Explosion safety category for dust
None
Number of safety auxiliary contacts
1
Ambient temperature during operating
-25.0 °C
Switching capacity (AC-15 230V) (A)
6 A
Number of contacts as change-over contact
0
Rated operation current Ie at AC-15, 24 V
10 A
Rated operation current Ie at DC-13, 24 V
3 A
Rated operation current Ie at AC-15, 125 V
6 A
Rated operation current Ie at AC-15, 230 V
6 A
Rated operation current Ie at DC-13, 125 V
0,8 A
Rated operation current Ie at DC-13, 230 V
0,3 A
Type of interface for safety communication
None
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
