T Rotary Switches and P Switch-Disconnectors for Reliable Switching and Disconnection Tailor-made solutions for any task T rotary switches and P switch-disconnectors are also available for a wide range of different standard circuits and ratings. Even the number of possible switch combinations is virtually unlimited. Different designs, front plates and special switches ensure optimum flexibility to meet the requirements at hand. Furthermore, application safety is always the prime consideration in design. The covered terminals are finger-proof to VDE 0106. Typical applications for T rotary switches and P switch-disconnectors include: Maintenance, repair and safety switches On/Off switches Main switches Control switches Panic switches Manual/Automatic switches etc. CI-K enclosures for rapid and inexpensive wiring Moeller's clever CI-K enclosures are ideal for rotary switches and switch-disconnectors.
Device construction

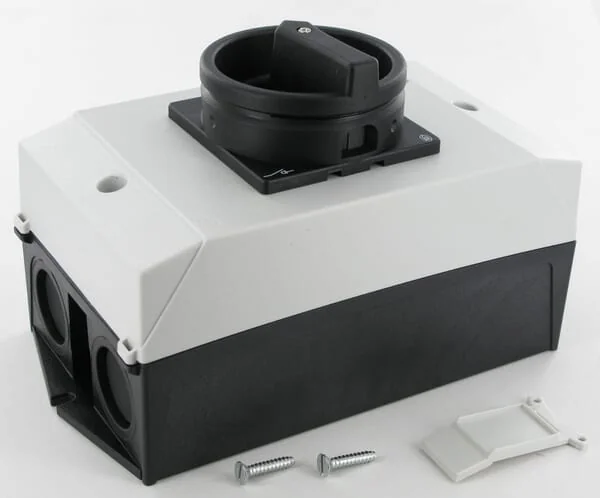

Complete device in housing
Colour control element
Black
Manufacturer Product ID
207299
Rated operating voltage
690.0-690.0 V
Type of control element
Short thumb-grip
Switching power at 400 V
13 kA
Version as safety switch
No
Voltage release optional
No
Rated permanent current Iu
25 A
With pre-assembled cabling
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Rated operation power at AC-3, 400 V
7,5 kW
Degree of protection (IP), front side
65
Rated operation power at AC-23, 400 V
13 kW
Rated short-time withstand current lcw
0,6 kA
Version as emergency stop installation
No
Version as maintenance-/service switch
No
Rated permanent current at AC-21, 400 V
25 A
Rated permanent current at AC-23, 400 V
25 A
Conditioned rated short-circuit current Iq
80 kA
Suitable for distribution board installation
No
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
