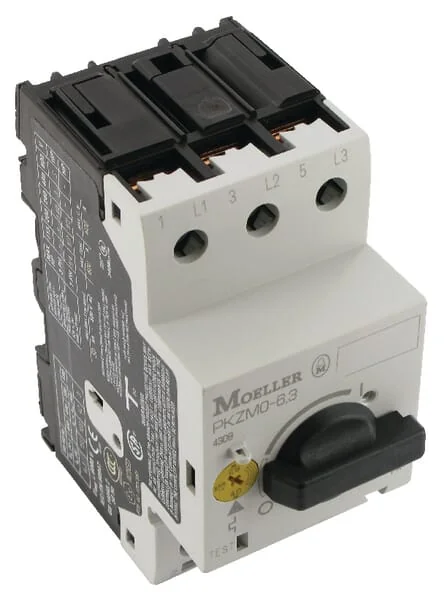

Eaton - PKZM0630 - Engine Circuit Breaker
Eaton - PKZM0630 - Engine Circuit Breaker

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping

Pay Securely with

Eaton - PKZM0630 - Engine Circuit Breaker

Eaton - PKZM0630 - Engine Circuit Breaker

€87.38

(Excl. VAT)

Price

(Excl. VAT)

€87.38

Eaton
Eaton specializes in hydraulic systems, power transmission, and control technologies for agricultural machinery. The brand provides components like valves, pumps, and hoses used in tractors and harvesting equipment. Its solutions enhance efficiency and reliability in demanding farming and forestry operations. Shop more than 585 genuine Eaton spare parts.

Product Details

Brand
Eaton
Unit
Each
Depth
76 mm
Width
45 mm
Height
93 mm
Technical info
The PKZ motor-protective circuit-breaker from Moeller is synonymous with quality. Moeller is reintroducing the popular pushbutton actuation in addition to the rotary drive with the new xStart product system for the PKZM 01 (up to 16 A). Furthermore, the PKZ motor-protective circuit-breaker has been modified and its technical performance improved. Just as certain as the clear indication of the switch positions in the PKZ series is the secure handling of short-circuit currents: The PKZM 0 and PKZM 4 devices master currents up to 150 kA.
Number of poles
3
Insulation class
20
Device construction
Built-in device fixed built-in technique
Switch off technique
Thermomagnetic
Manufacturer Product ID
072738
Phase failure sensitive
Yes
Rated operating voltage
690.0-690.0 V
Type of control element
Turn button
Rated permanent current Iu
6,3 A
Overload release current setting
4 A
With integrated auxiliary switch
No
With thermal overload protection
No
Rated operation power at AC-3, 230 V
1,1 kW
Rated operation power at AC-3, 400 V
2,2 kW
Rated operation power at AC-3, 440 V
3 kW
Rated operation power at AC-3, 500 V
3 kW
With integrated under voltage release
No
Rated operation power at AC-3, 660-690 V
4,3 kW
Type of electrical connection of main circuit
Screw connection
Adjustment range undelayed short-circuit release
98.0-98.0 A
Rated short-circuit breaking capacity lcu at 400 V, AC
150 kW
Manufacturer
Eaton

Similar items you might like

  • Eaton

    Eaton - PKZM063C - Motor Protection Circuit Breaker

    Eaton

    €90.71

  • Eaton

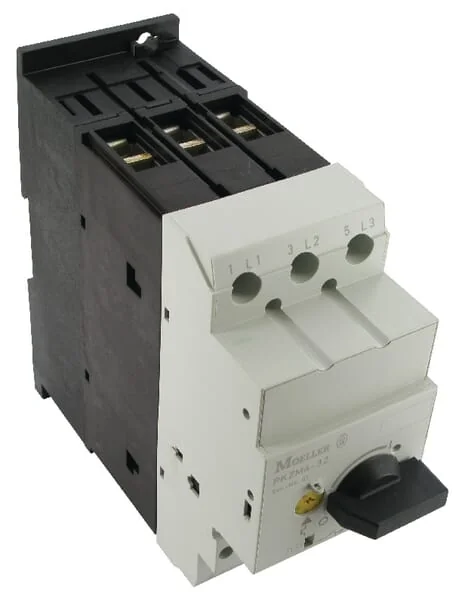

    Eaton - PKZM425 - Motor Protection Circuit Breaker

    Eaton

    €188.22

  • Eaton

    Eaton - PKZM440 - Motor Protection Circuit Breaker

    Eaton

    €246.80

  • Eaton

    Eaton - PLN6B161N - Miniature Circuit Breaker 16A, 1P+N,B

    Eaton

    €25.46

  • Eaton

    Eaton - PLN6B61N - Miniature Circuit Breaker 6A, 1P+N,B

    Eaton

    €32.34

  • Eaton

    Eaton - PLN6C101N - Miniature Circuit Breaker 10A, 1P+N,C

    Eaton

    €34.42

  • Eaton

    Eaton - PLN6C161N - Miniature Circuit Breaker 16A, 1P+N,C

    Eaton

    €27.26

  • Eaton

    Eaton - PLN6C201N - Miniature Circuit Breaker 20A, 1P+N,C

    Eaton

    €34.42

  • Eaton

    Eaton - PLS6B323 - Miniature Circuit Breaker 32A, 3P,B

    Eaton

    €90.03

  • Eaton

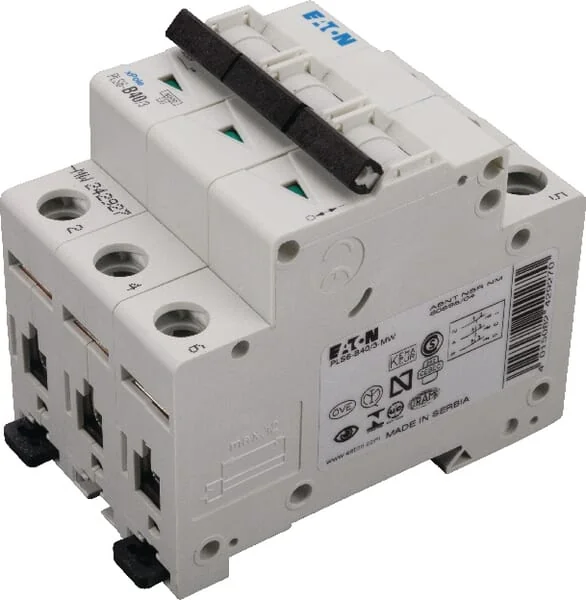

    Eaton - PLS6B403 - Miniature Circuit Breaker 40A, 3P,B
