Ecoloc - RFN711030X41 - Locking Assembly
Ecoloc - RFN711030X41 - Locking Assembly
Ecoloc - RFN711030X41 - Locking Assembly
Ecoloc - RFN711030X41 - Locking Assembly
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Ecoloc - RFN711030X41 - Locking Assembly

Ecoloc - RFN711030X41 - Locking Assembly

€25.79

(Excl. VAT)

Price

(Excl. VAT)

€25.79

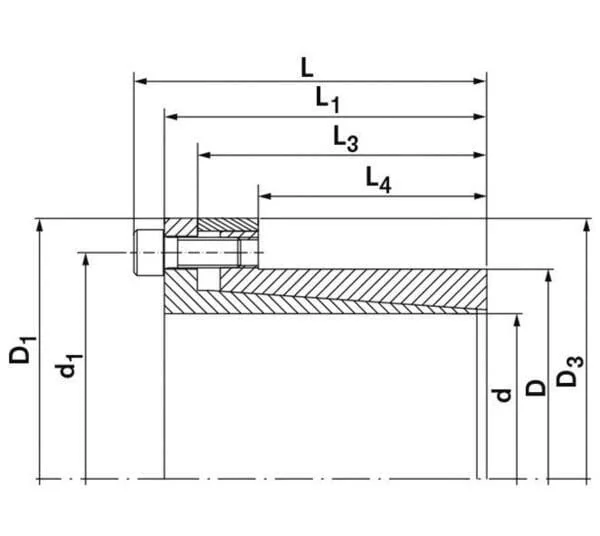

Product Details

Brand
Ecoloc
X
- mm
D2
62 mm
L2
38 mm
Unit
Each
LLength
51 mm
L1Length L1
45 mm
L3Length L3
25 mm
L4Length L4
- mm
D3Diameter D3
48 mm
Number of bolts
6
DOutside diameter
41 mm
d1Inside diameter
- mm
TA (Locking torque)
17 N·m
Dg (Clamping thread)
M6
dDiameter shaft max.
30 mm
D1Outside diameter hub
57 mm
dw solid shaft diameter
- mm
pN (Hub pressure at given TA)
90 N/mm²
pW (Shaft pressure at given TA)
125 N/mm²
F ax (Transmissible axial force)
31 kN
T (Transmissible tork at given TA)
475 N·m
Tmax (Maximum transmissible torque
- N·m
Minimum required outside hub diameter at Rp0,2=200 N/mm²
- mm
Minimum required outside hub diameter at Rp0,2=300 N/mm²
- mm
Minimum required outside hub diameter at Rp0,2=400 N/mm²
- mm
Manufacturer
Ecoloc
