ELAFLEX - ERVCR300 - Coupling Diameter 300mm

ELAFLEX - ERVCR300 - Coupling Diameter 300mm

ELAFLEX - ERVCR300 - Coupling Diameter 300mm

ELAFLEX - ERVCR300 - Coupling Diameter 300mm

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

ELAFLEX - ERVCR300 - Coupling Diameter 300mm

ELAFLEX - ERVCR300 - Coupling Diameter 300mm

€839.47

(Excl. VAT)

Price

(Excl. VAT)

€839.47

Number of products

Product Description

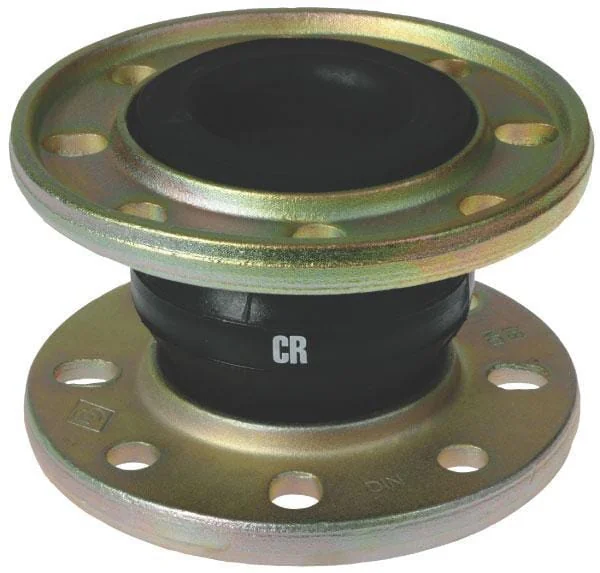

Elastic pipe connector ERV type CR (black) with rotating steel flanges

ELAFLEX

Product Details

Brand

Unit

Each

Angle

5 °

Benefits

Simple to use

Consists of

The rubber compensators are supplied ready for installation Additional seals are usually not necessary

Total length

160 mm

Technical info

The information for the permitted range of movement applies to temperatures up to 50°C. At operating temperatures of 70°C, the permissible utilisation level is 80% The value "max. torque (Nm)" indicates the maximum tightening torque of the flange bolts

Inside diameter

300 mm

Nominal pressure

10 BAR

Outside diameter

445 mm

Application range

Process water, waste water, sewage sludge, slurry and other biomasses They differ only in the material of the rubber bellows from the ERV special types with the coloured rings. As a result, the media and temperature resistance is limited. As regards the normal water, environment and ageing resistance, as well as the noise and vibration damping and the permitted range of movement, they are comparable with the ERV special types

Connection holes diameter

22 mm

Number of connection holes

12

Connection holes circle diameter

400 mm

Manufacturer

ELAFLEX
