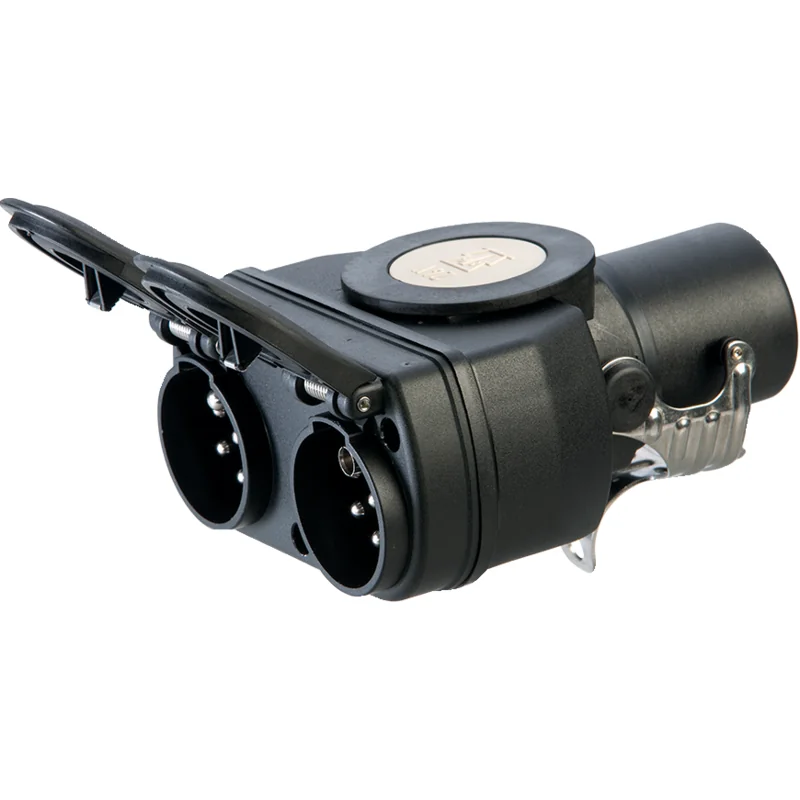

Erich Jaeger - 311071 - Short adapter

SKU: erich-jaeger-311071

Erich Jaeger - 311071 - Short adapter

€94.22€80.53 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€94.22

Description: with 15P/24V plug (ISO 12098) and 2x 7P/24V socket (ISO 1185 – Type N + ISO 3731 – Type S) Standards: ISO 12098, ISO 1185 – Type N, ISO 3731 – Type S Industry: Commercial vehicles Voltage: 24 V Housing color: Black Housing material: reinforced plastic Number of poles: 07, 15 Number of connected plugs: 1 Number of connected sockets: 2 Wiring diagram: Diagram 10 Pin assignment 15-pin (ISO 12098) Left turn signal Right turn signal Rear fog light Ground Left tail, marker lights Right tail, marker lights Brake light Reversing light Hydraulic tailgate Minus Service brake Starting aid Work light Lift axle (forced steering) Reserve Pin assignment 7-pin N (ISO 1185) Ground Left tail, marker lights Left turn signal Brake light Right turn signal Right tail, marker lights Trailer brake control Pin assignment 7-pin S (ISO3731) Ground Not assigned Reversing light Power supply (continuous positive) Control device for ground Power supply controlled via ignition switch Rear fog light
Erich Jaeger
Erich-jaeger provides agricultural machinery parts and tractor components for maintenance and repair. The brand offers bearings, seals, and drivetrain parts compatible with a wide range of farming equipment. Its products are valued for precise fit and durability in field operations. Shop more than 137 genuine Erich-jaeger spare parts.

Brand
Erich Jaeger
Color
Schwarz
Voltage (V)
24
Connection Type
Schema 10
Number of Poles
15, 7
Standard Designation
ISO 12098, ISO 1185 - Typ N, ISO 3731 - Typ S
Manufacturer
Erich Jaeger
