Eurofluid - ES3A38P - Subplate Bottom Port
Eurofluid - ES3A38P - Subplate Bottom Port
Eurofluid - ES3A38P - Subplate Bottom Port
Eurofluid - ES3A38P - Subplate Bottom Port
Eurofluid - ES3A38P - Subplate Bottom Port
Eurofluid - ES3A38P - Subplate Bottom Port

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Eurofluid - ES3A38P - Subplate Bottom Port

Eurofluid - ES3A38P - Subplate Bottom Port

€33.04

(Excl. VAT)

Price

(Excl. VAT)

€33.04

Product Details

Brand
Eurofluid
Unit
Each
Material
Cast iron GG25
Size code
Cetop 03
Total width
30 mm
ISO standard
4401
Total height
65 mm
Total length
95 mm
Max. flow rate
35 l/min
Max pressure peak
350 BAR
Position of ports
Bottom
Number of sections
1
Workports diameter
3/8 Inch
Max working pressure
310 BAR
Inlet port thread diameter
3/8 Inch
Outlet port thread diameter
3/8 Inch
Distance workport center to center
32 mm
Distance mounting holes center to center width
50 mm
Distance mounting holes center to center length
80 mm
Manufacturer
Eurofluid

Similar items you might like

  • Eurofluid

    Eurofluid - ES3D38L1 - 03 Subplate Side A+T+B+P 3/8 Inch

    Eurofluid

    €38.53

  • Eurofluid

    Eurofluid - ES3D38L3 - Subplate Side Port A-P / B, T

    Eurofluid

    €47.07

  • Eurofluid

    Eurofluid - ES3D38PL - Subplate 03 Side/Bottom A-B / P-T

    Eurofluid

    €40.36

  • Eurofluid

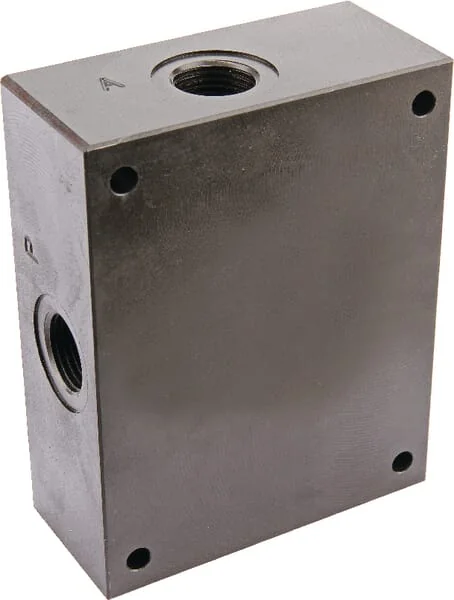

    Eurofluid - ES5A12L - Side Footplate 1/2 Inch

    Eurofluid

    €58.73

  • Eurofluid

    Eurofluid - ES5A12P - 05 Subplate Bottom Port 1/2 Inch

    Eurofluid

    €58.72

  • Eurofluid

    Eurofluid - ES5A12PL - Subplate 05 Side/Bottom A-B / P-T

    Eurofluid

    €59.20

  • Eurofluid

    Eurofluid - ES5B12LLY - Subplate Side Port A-B / P-T

    Eurofluid

    €75.05

  • Eurofluid

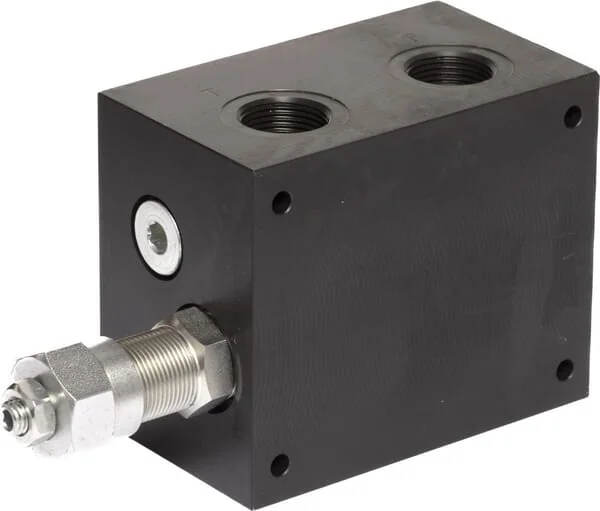

    Eurofluid - ES5B34LLX3F - Subplate 3/4 Inch 80-250 Bar
