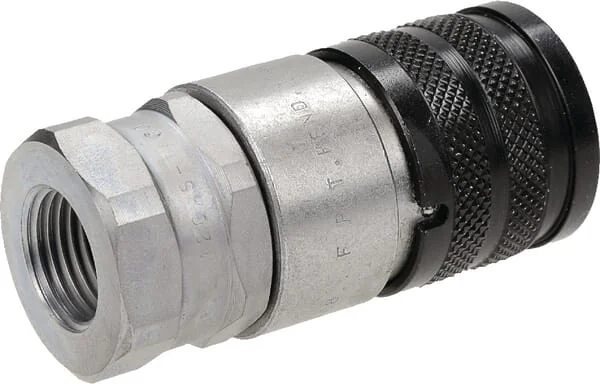

Faster - 3FFH0812GASF - Coupler Face Plate Female 1/2BSP

OEM Quality

SKU: faster-3ffh0812gasf

Faster - 3FFH0812GASF - Coupler Face Plate Female 1/2BSP

€46.25

(excl. VAT)

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€46.25

Technical information: Because of their balanced construction quick release couplings with flat face of type 3FFI can be coupled by the so-called one-hand operation system. The sleeve of body moves along automatically. During disconnection, the oil w
Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,003 genuine Faster spare parts.

Brand
Faster
Part Numbers
3ffh0812gasf
Unit
Each
Shape
Straight - 2 connection sides
Series
3FFH
Weight
460 g
Material
Steel
Body size
12,5 mm
Size code
BG 4
Valve type
Flat
ISO standard
16028
Total length
3,2 Inch
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
81,3 mm
Technical info
Because of their balanced construction quick release couplings with flat face of type 3FFI can be coupled by the so-called one-hand operation system. The sleeve of body moves along automatically. During disconnection, the oil which is between the two parts is displaced back into the system. With this ingenious construction externally leakage is prevented and air is prevented from entering the system. Show more
Long description
Technical information: Because of their balanced construction quick release couplings with flat face of type 3FFI can be coupled by the so-called one-hand operation system. The sleeve of body moves along automatically. During disconnection, the oil w
Outside diameter
38 mm
Working pressure
350 BAR
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Flow rate at 2 bar
110 l/min
Connection no 1 type
Quick coupling
Max working temperature
125 °C
Connection no 1 diameter
38 mm
Connection no 1 hex size
34 mm
Min. working temperature
-25 °C
Connection 2, thread type
BSPP
Connectable under pressure
Yes
Connection no 1 thread type
BSP
Connection 2, thread diameter
1/2 Inch
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
Connection 2, threads per inch
14
Connection no 1 thread diameter
1/2 Inch
Connection 2, type - male/female
Female
Quick disconnection working type
Sleeve retraction
Connection no 1 type - male/female
Female
Manufacturer
Faster
