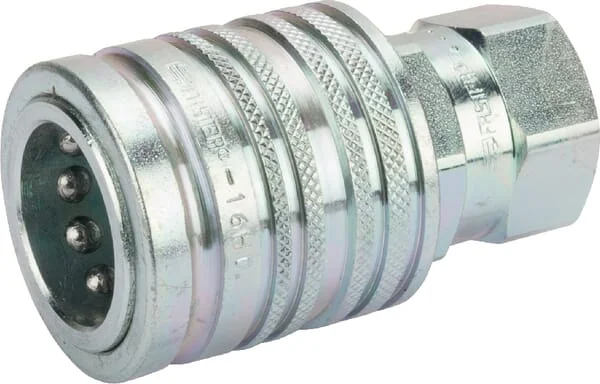

Faster - CPV0802215F - COUPLING HOUSING M22x1.5 BI

OEM Quality

SKU: faster-cpv0802215f

Faster - CPV0802215F - COUPLING HOUSING M22x1.5 BI

€13.64

(excl. VAT)

In stock - ready to ship

Ships within 86 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€13.64

Application range: For universal use Agricultural machines Mineral oil-based fluids Properties: Push-pull principle Axial actuation of locking sleeve in both directions (double acting) Breakaway
Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,003 genuine Faster spare parts.

Brand
Faster
Part Numbers
cpv0802215f
Unit
Each
Shape
Straight - 2 connection sides
Series
CPV
Weight
252,7 g
Material
Carbon steel
Body size
12,5 mm
Size code
BG 3
Properties
Push-pull principle Axial actuation of locking sleeve in both directions (double acting) Breakaway function Induction hardened stressed parts
Valve type
Poppet
ISO standard
7241-A
LTotal length
2,61 Inch
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
66,3 mm
Technical info
Couple by inserting the plug (one-handed operation)
Long description
Application range: For universal use Agricultural machines Mineral oil-based fluids Properties: Push-pull principle Axial actuation of locking sleeve in both directions (double acting) Breakaway
Outside diameter
38 mm
Working pressure
250 BAR
Application range
For universal use Agricultural machines Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Flow rate at 2 bar
75 l/min
Connection no 1 type
Quick coupling
Max working temperature
125 °C
Connection no 1 diameter
38 mm
Connection no 1 hex size
27 mm
Min. working temperature
-25 °C
Connection 2, thread type
Metric
Connectable under pressure
No
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
DConnection 2, thread diameter
M22
Connection no 1 thread diameter
22 mm
Connection 2, type - male/female
Female
Connection no 1 thread type code
0
Quick disconnection working type
Pull to disconnect
Connection no 1 type - male/female
Female
Manufacturer
Faster
