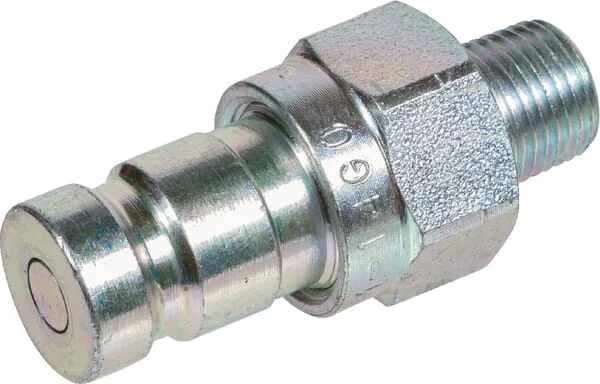

Faster - DF04118NPTM - Faster Measuring Point Coupling Male 1/8 NPT
Faster - DF04118NPTM - Faster Measuring Point Coupling Male 1/8 NPT
Faster - DF04118NPTM - Faster Measuring Point Coupling Male 1/8 NPT
Faster - DF04118NPTM - Faster Measuring Point Coupling Male 1/8 NPT
Faster - DF04118NPTM - Faster Measuring Point Coupling Male 1/8 NPT
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Faster - DF04118NPTM - Faster Measuring Point Coupling Male 1/8 NPT

Faster - DF04118NPTM - Faster Measuring Point Coupling Male 1/8 NPT

€7.94

(Excl. VAT)

Price

(Excl. VAT)

€7.94

Product Description

Application range: Measuring point systems Mineral oil-based fluids Benefits: Low leakage No air pockets during coupling Details: Flat face Extra compact design P
Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,003 genuine Faster spare parts.

Product Details

Brand
Faster
Unit
Each
Shape
Straight - 2 connection sides
Length
41 mm
Weight
35,9 g
Details
Flat face Extra compact design
Benefits
Low leakage No air pockets during coupling
Material
Steel
Body size
6,3 mm
Properties
Ideal as diagnostic coupler Couple by inserting the plug (one-handed operation) Decouple by pushing back the sleeve
Valve type
Flat
ISO standard
15171-1
Total length
1,61 Inch
ANSI standard
B1.20.3
Seal material
Nitrile rubber [NBR]
L1Total length
40,9 mm
Long description
Application range: Measuring point systems Mineral oil-based fluids Benefits: Low leakage No air pockets during coupling Details: Flat face Extra compact design P
Outside diameter
19 mm
Working pressure
470 BAR
Application range
Measuring point systems Mineral oil-based fluids
Surface treatment
Chromium-plated
Connection 2, type
Push-in
Flow rate at 2 bar
2 l/min
Connection no 1 type
Thread
Connection 2, diameter
12,7 mm
Max working temperature
125 °C
Connection no 1 diameter
0,49 Inch
Connection no 1 hex size
0,67 Inch
Min. working temperature
-25 °C
Connectable under pressure
No
SWConnection no 1 hex size
17 mm
Connection no 1 thread type
NPTF
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
Connection 2, type - male/female
Male
Connection no 1 thread type code
01
Quick disconnection working type
Sleeve retraction
D3Connection no 1 thread diameter
12,55 mm
Connection no 1 type - male/female
Male
Manufacturer
Faster
