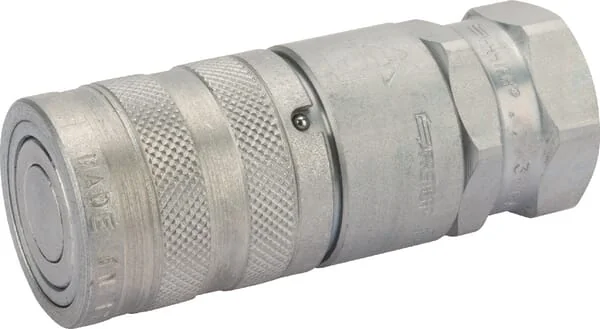

Faster - FFH121GASF - Faster Quick Coupling Female 3/4-1 BSP
Faster - FFH121GASF - Faster Quick Coupling Female 3/4-1 BSP
Faster - FFH121GASF - Faster Quick Coupling Female 3/4-1 BSP
Faster - FFH121GASF - Faster Quick Coupling Female 3/4-1 BSP

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Faster - FFH121GASF - Faster Quick Coupling Female 3/4-1 BSP

Faster - FFH121GASF - Faster Quick Coupling Female 3/4-1 BSP

€69.04

(Excl. VAT)

Price

(Excl. VAT)

€69.04

Product Description

With special flat sealing valve Very high corrosion resistance Axial actuation of locking sleeve to rear (single acting) Locks on both sides Induction hardened stressed parts Cannot be connected under pressure
Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,003 genuine Faster spare parts.

Product Details

Brand
Faster
Pros
Easy to operate with one hand Low leakage No air pockets during coupling Protected against accidental decoupling
Unit
Each
Shape
Straight - 2 connection sides
Length
100 mm
Series
FFH
Weight
880,6 g
Material
Carbon steel
Body size
20 mm
Size code
BG 6
Valve type
Flat
ISO standard
16028
Total length
4,11 Inch
BTotal length
104 mm
Seal material
Nitrile rubber [NBR]
Product details
With special flat sealing valve Very high corrosion resistance Axial actuation of locking sleeve to rear (single acting) Locks on both sides Induction hardened stressed parts Cannot be connected under pressure
Outside diameter
48 mm
Working pressure
350 BAR
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Flow rate at 2 bar
160 l/min
Connection no 1 type
Quick coupling
Max working temperature
100 °C
Connection no 1 hex size
1,65 Inch
Min. working temperature
-25 °C
Connection 2, thread type
BSPP
XConnection no 1 hex size
42 mm
Connectable under pressure
No
Connection no 1 thread type
BSP
ØDConnection no 1 diameter
48 mm
XConnection no 1 wrench size
42.0 mm
Quick connection locking type
Radial balls
Quick connection working type
Push to connect
AConnection 2, thread diameter
1 Inch
Connection 2, threads per inch
11
AConnection no 1 thread diameter
1 Inch
Connection 2, type - male/female
Female
Quick disconnection working type
Sleeve retraction
Connection no 1 type - male/female
Female
Manufacturer
Faster

Similar items you might like

  • Faster

    Faster - FFH1234NPTF - Faster Quick Coupling Female 3/4-3/4 NPT

    Faster

    €58.97

  • Faster

    Faster - FFH1234SAEM - Faster Quick Coupling Male 3/4-1.1/16-UNF

    Faster

    €38.40

  • Faster

    Faster - FFH16114GASF - Faster Quick Coupling Flat 1-1/4 F 1-1/4 F

    Faster

    €82.23

  • Faster

    Faster - FSH0812GASF - Faster Quick Coupling 1/2"-1/2" BSP

    Faster

    €44.37

  • Faster

    Faster - HNV112GASF - Faster Coupling Housing 1 1/2" BSP

    Faster

    €162.41

  • Faster

    Faster - HNV112GASM - Faster Push-In Nipple 1 1/2"-BSP

    Faster

    €252.38

  • Faster

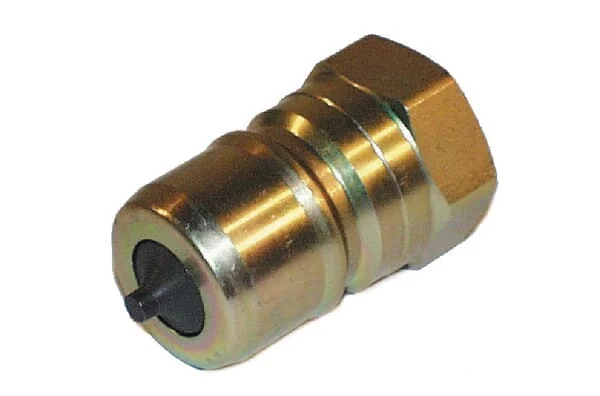

    Faster - HNV1212SAEM - Faster Push-In Nipple 3/4" UNF
