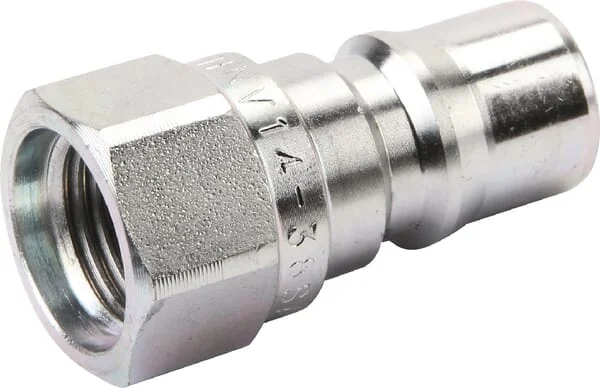

Faster - HNV1438SAEF - Faster Coupling housing 9/16"-UNF

OEM Quality

SKU: faster-hnv1438saef

Faster - HNV1438SAEF - Faster Coupling housing 9/16"-UNF

€16.81€14.37 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€16.81

Brand
Faster
Part Numbers
HNV1438SAEF
Aftermarket Part Numbers

Faster

Unit
Each
Shape
Straight - 2 connection sides
Series
HNV
Weight
122,9 g
Material
Carbon steel
Body size
6,3 mm
Properties
Higher flow rate than standard couplings Axial actuation of locking sleeve to rear (single acting) Locks on both sides Induction hardened stressed parts No breakaway function
Valve type
Poppet
ISO standard
7241-A 11926-1
Total length
2,36 Inch
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
74 mm
Long description
Application range: Agriculture Construction machines Industrial Mineral oil-based fluids Properties: Higher flow rate than standard couplings Axial actuation of locking sleeve to rear (single acti
Outside diameter
28 mm
Working pressure
450 BAR
Application range
Agriculture Construction machines Industrial Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Flow rate at 2 bar
14 l/min
Connection no 1 type
Quick coupling
Max working temperature
100 °C
Connection no 1 diameter
28 mm
Connection no 1 hex size
0,75 Inch
Min. working temperature
-40 °C
Connection 2, thread type
UNF
XConnection no 1 hex size
19 mm
Connectable under pressure
No
Connection no 1 thread type
UNF
Connection 2, thread diameter
9/16 Inch
Quick connection locking type
Radial balls
Quick connection working type
Sleeve retraction
Connection 2, threads per inch
18
Connection no 1 thread diameter
9/16 Inch
Connection 2, type - male/female
Female
Connection no 1 thread type code
0
Connection no 1 threads per inch
18
Quick disconnection working type
Sleeve retraction
Connection no 1 type - male/female
Female
Manufacturer
Faster

Application range: Agriculture Construction machines Industrial Mineral oil-based fluids Properties: Higher flow rate than standard couplings Axial actuation of locking sleeve to rear (single acti
Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,060 genuine Faster spare parts.
