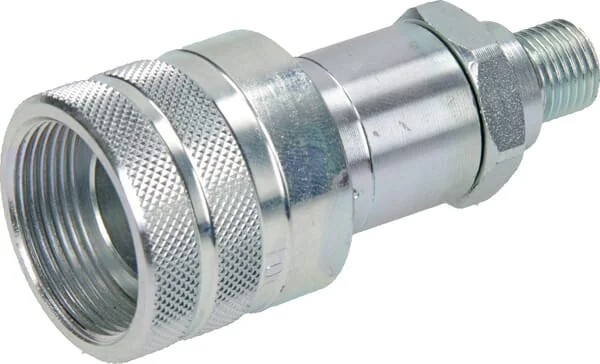

Faster - PVVM382314GF - Female Coupling 3/8 - 1/4 BSP
Faster - PVVM382314GF - Female Coupling 3/8 - 1/4 BSP
Faster - PVVM382314GF - Female Coupling 3/8 - 1/4 BSP
Faster - PVVM382314GF - Female Coupling 3/8 - 1/4 BSP
Faster - PVVM382314GF - Female Coupling 3/8 - 1/4 BSP

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping on orders over €60

Pay Securely with

Faster - PVVM382314GF - Female Coupling 3/8 - 1/4 BSP

Faster - PVVM382314GF - Female Coupling 3/8 - 1/4 BSP

€20.27

(Excl. VAT)

Price

(Excl. VAT)

€20.27

Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,003 genuine Faster spare parts.

Product Details

Brand
Faster
Unit
Each
Shape
Straight - 2 connection sides
Series
PVVM
Weight
285,7 g
Material
Carbon steel
Body size
10 mm
Properties
Highest pressure coupling With cone valve Can be used with many European market manufacturers
Valve type
Poppet
ISO standard
14540
Total length
5,81 Inch
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
L1Total length
147,7 mm
Technical info
Coupling must be screwed as tight as possible
Outside diameter
36 mm
Working pressure
1000 BAR
Application range
Hydraulic tools Life saving equipment Construction machines Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Flow rate at 2 bar
20 l/min
Connection no 1 type
Quick coupling
Connection 2, diameter
36 mm
Max working temperature
125 °C
Connection no 1 hex size
0,98 Inch
Min. working temperature
-25 °C
Connection 2, thread type
BSPP
XConnection no 1 hex size
25 mm
Connectable under pressure
Yes
Connection no 1 thread type
BSP
Quick connection locking type
Thread
Quick connection working type
Screw
Connection no 1 thread diameter
1/4 Inch
Connection 2, type - male/female
Female
Connection no 1 thread type code
23
Connection no 1 threads per inch
19
Quick disconnection working type
Screw
Connection no 1 type - male/female
Male
Manufacturer
Faster
