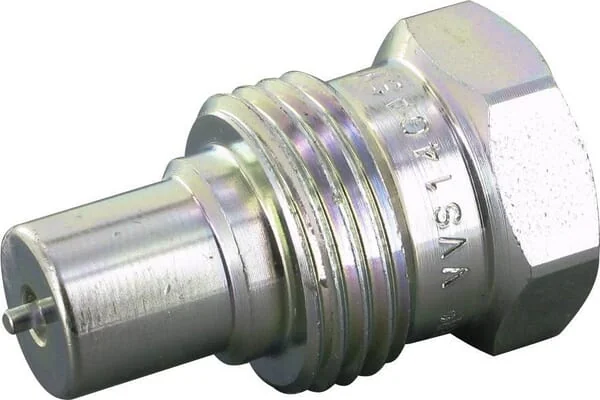

Faster - VVS14GASM - Male Coupling 1/4 Bsp
Faster - VVS14GASM - Male Coupling 1/4 Bsp
Faster - VVS14GASM - Male Coupling 1/4 Bsp
Faster - VVS14GASM - Male Coupling 1/4 Bsp

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping on orders over €60

Pay Securely with

Faster - VVS14GASM - Male Coupling 1/4 Bsp

Faster - VVS14GASM - Male Coupling 1/4 Bsp

€13.50

(Excl. VAT)

Price

(Excl. VAT)

€13.50

Faster
Faster produces agricultural machinery, including tillage equipment and tractor-mounted implements. The brand focuses on robust designs for heavy-duty farming tasks such as plowing and seeding. Its products are widely used in European agriculture for their reliability and performance. Shop more than 1,003 genuine Faster spare parts.

Product Details

Brand
Faster
Unit
Each
Shape
Straight - 2 connection sides
Weight
89,8 g
Material
Steel
Body size
6,3 mm
Valve type
Poppet
ISO standard
1179-1
Total length
1,69 Inch
Seal material
Nitrile rubber [NBR]
L1Total length
43 mm
Technical info
Sleeve material: white steel, passivated, Cr III, hardened valve Connector material: hardened carbon steel, Cr III, hardened valve Seal: NBR with PTFE support ring Operating temperature: -25° C to + 160° C Dynamic safety factor: 1:3 Static safety factor: 1:2 Connector: plug and sleeve can only be coupled under residual pressure; decoupling allowed under pressure
Outside diameter
28 mm
Working pressure
800 BAR
Application range
Construction machinery and equipment with extremely high dynamic pressure Demolition hammer For situations where the risk of a connector coming loose must be prevented
Surface treatment
Chromium-plated
Connection 2, type
Thread
Flow rate at 2 bar
8 l/min
Connection no 1 type
Quick coupling
Max working temperature
125 °C
Connection no 1 diameter
14,1 mm
Connection no 1 hex size
25 mm
Min. working temperature
-25 °C
Connection 2, thread type
BSPP
Connectable under pressure
Yes
Connection no 1 thread type
BSP
Connection no 1 wrench size
25.0 mm
Connection 2, thread diameter
1/4 Inch
Quick connection locking type
Thread
Quick connection working type
Screw
Connection 2, threads per inch
19
Connection 2, type - male/female
Female
Quick disconnection working type
Screw
D3Connection no 1 thread diameter
14,1 mm
Connection no 1 type - male/female
Male
Manufacturer
Faster
