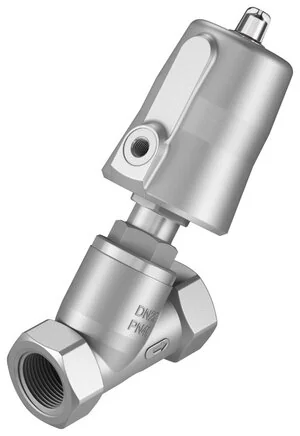

Festo - 1002517 - Angle Seat Valve

SKU: festo-1002517

Festo - 1002517 - Angle Seat Valve

€382.25€326.71 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€382.25

Brand
Festo
Medium
neutrale Flüssigkeiten
Flow Kv
11
Reset Mode
Mechanical spring
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
pipe installation
Flow Direction
Not reversible
Lower valve seat, for gas and liquid media
Max. Viscosity
600
Valve Function
2/2 closed monostable
Line Connection
Threaded muff G1 acc. to DIN ISO 228
Exhaust Function
Cannot be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Nominal Width (mm)
24
Construction Set Up
Poppet valve with piston actuator
Nominal Pressure PN
40
Material - Seal Seat
PTFE
Pneumatic Connection
female thread G1/8
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 1
Spindle Seal Material
PTFE
LABS (PWIS) Conformity
VDMA24364-Zone III
Medium Temperature (°C)
-40 to 200
Operating Pressure (MPa)
0.6 to 1
Actuator Housing Material
High-alloyed stainless steels
Ambient Temperature (°C)
-10 to 60
Instrument Housing Material
Cast stainless steel
Corrosion Resistance Class KBK
3 - severe corrosion stress
Material Number Instrument Housing
14.408
EAN
4052568226183
Manufacturer
Festo
