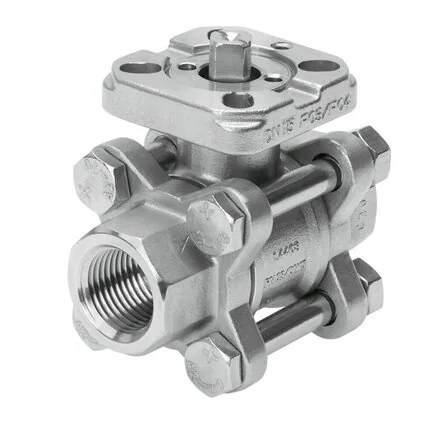

Festo - 1686625 - Ball Valve

SKU: festo-1686625

Festo - 1686625 - Ball Valve

€131.23€112.16 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€131.23

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
7
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE-verstärkt
Shaft Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Nominal Width DN
8
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Rp1/4
Construction Set Up
2-way ball valve
Inner Diameter (mm)
10,0
Nominal Pressure PN
63
Material Number Ball
14.408
Actuation Torque (Nm)
6
Hand Assist Actuation
None
Installation Position
arbitrary
Material Number Shaft
14.401
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F04
Material Number Housing
14.408
Medium Temperature (°C)
-10 to 200
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
3 - severe corrosion stress
EAN
4052568108120
Manufacturer
Festo
