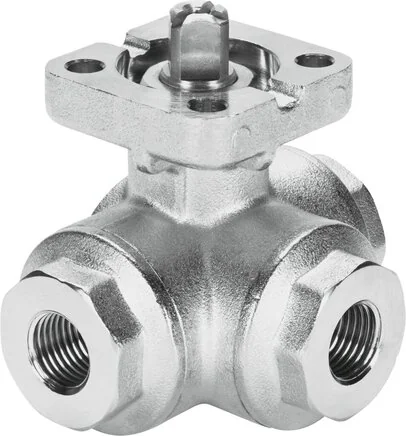

Festo - 1692226 - Ball Valve

SKU: festo-1692226

Festo - 1692226 - Ball Valve

€284.78€243.40 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€284.78

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE-verstärkt
Shaft Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Nominal Width DN
20
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Rp3/4
Construction Set Up
T-borehole
Inner Diameter (mm)
16,0
Nominal Pressure PN
63
Material - Seal Seat
PTFE, modified
Material Number Ball
14.408
Actuation Torque (Nm)
18
Hand Assist Actuation
None
Installation Position
arbitrary
Material Number Shaft
14.401
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F05
Material Number Housing
14.408
Medium Temperature (°C)
-10 to 200
Flow Rate Kv T Hole Angled
4,8
Switching Position Display
Carriage direction = flow direction
Flow Rate Kv T Hole Straight
8,3
Corrosion Resistance Class KBK
3 - severe corrosion stress
EAN
4052568245221
Manufacturer
Festo
