Material Note
RoHs compliant
Housing Material
TPE-U(PUR)
Line Designation
Without sign holder
Based On Standard
EN 61076-2-101
Construction Set Up

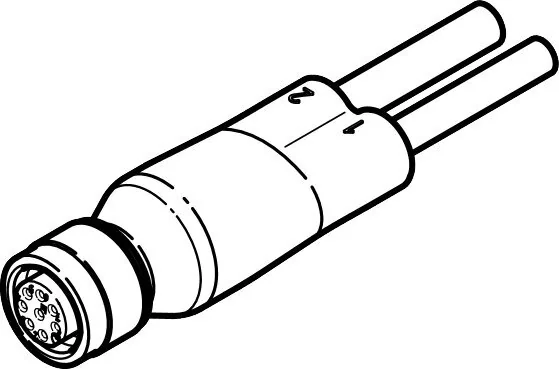

Y-distributor with cable field device and control side
Screw Lock Material
brass, nickel-plated
Additional Functions
Connection of sensor and control to proportional pressure regulator valve
Cable Diameter 2 (mm)
4,50
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Gold plated
Ambient Temperature (°C)
-25 to 80
Insulation Sleeve Material
PVC
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
0 to 30
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Conductor - Nominal Cross-section
0,25
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 3, Function
Field device screen
Electrical Connection 1, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
2
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Electrical Connection 3, Connection Type
cable
Electrical Connection 1, Connection Pattern
992265
Electrical Connection 1, Occupied Pin / Wire
6
Electrical Connection 2, Occupied Pin / Wire
5
Electrical Connection 3, Occupied Pin / Wire
3
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 3, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
8
Electrical Connection 2, Number Of Pins / Wires
5
Electrical Connection 3, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 80
