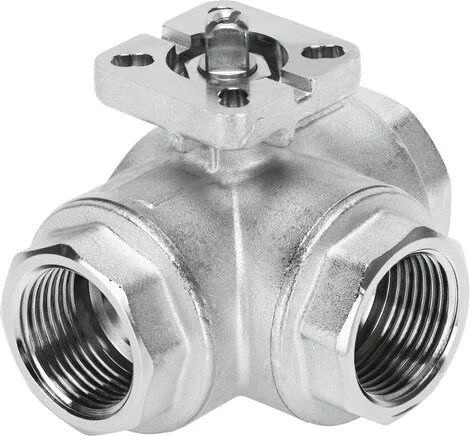

Festo - 4451859 - Ball Valve

SKU: festo-4451859

Browse all parts
Festo - 4451859 - Ball Valve

€310.26€265.18 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€310.26

Brand
Festo
Medium
neutrale Flüssigkeiten
Ball Material
chrome-plated
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
Brass
Housing Material
nickel-plated
Nominal Width DN
40
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Rp1 1/2
Construction Set Up
T-borehole
Inner Diameter (mm)
38,0
Nominal Pressure PN
25
Material Number Ball
CW614N
Installation Position
arbitrary
Material Number Shaft
CW614N
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F05
Material Number Housing
CW617N
Medium Temperature (°C)
-20 to 130
Flow Rate Kv T Hole Angled
200,0
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
26,7
EAN
4052568291679
Manufacturer
Festo
