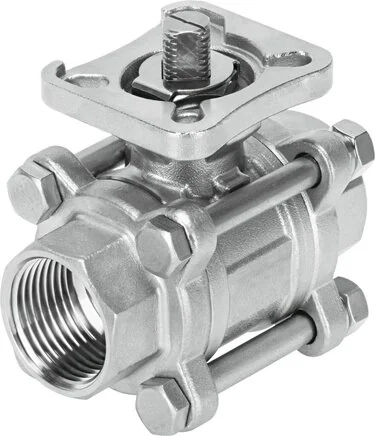

Festo - 4809123 - Ball Valve

SKU: festo-4809123

Festo - 4809123 - Ball Valve

€603.31€515.65 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€603.31

Brand
Festo
Medium
neutrale Flüssigkeiten
Flow Kv
684
Permission
CRN
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
Mechanical
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE
Shaft Material
High-alloyed stainless steels
Housing Material
Cast stainless steel
Nominal Width DN
65
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
2 1/2 NPT
Construction Set Up
2-way ball valve
Inner Diameter (mm)
63,0
Nominal Pressure PN
63
Material - Seal Seat
PTFE
Material Number Ball
14.401
Installation Position
arbitrary
Material Number Shaft
14.401
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F0710
Material Number Housing
14.408
Medium Temperature (°C)
-20 to 200
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
79,0
EAN
4052568275549
Manufacturer
Festo
