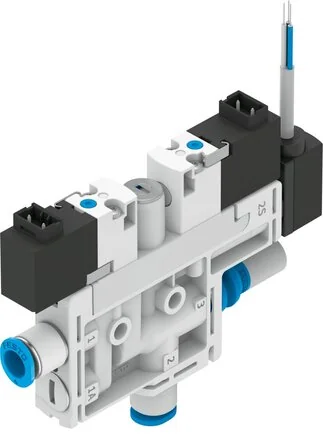

Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Control Output
PNP/NPN switchable
Fastening Type
With throughway bores
Line Properties
energiekettentauglich
Setting Options
Via display and buttons
Switch Function
Freely programmable
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Vacuum Connection
für Schlauch Außen-Ø 4 mm
Construction Set Up
T-shape
Integrated Function
Silencer open
Jet Nozzle Material
Aluminium wrought alloy
Measurement Process
Piezoresistive pressure sensor with display
Hand Assist Actuation
tentative
Installation Position
arbitrary
Ejector Characteristic
Standard
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
für Schlauch Außen-Ø 4 mm
Pneumatic Connection 3
Silencer open
Capture Nozzle Material
POM
Medium Temperature (°C)
0 to 50
Operating Pressure (MPa)
0,2 to 0,7
Tolerance Cable Diameter
± 0,1 mm
Ambient Temperature (°C)
0 to 50
Coil Characteristic Value
24 V DC: 1,0 W
Regulation Screw Material
Steel
Connection Thread Material
POM
Switching Element Function
Opener/closer switchable
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
21.6 to 26.4
Construction Type Silencer Type
open
Nominal Width Laval Nozzle (mm)
0,45
Nominal Operating Pressure (MPa)
0,4
Pressure Measurement Range (MPa)
-0,1 to 0
Conductor - Nominal Cross-section
0,14
Note On Operating And Control Medium
Oiled operation not possible
Operating Voltage Range DC Sensor (V)
18 to 30
Electrical Connection: Input, Function
Vakuumerzeugung
Electrical Connection: Outlet, Function
sensor
Operating Pressure For Max. Vacuum (MPa)
0,42
Electrical Connection: Inlet, Fastening Type
Ratcheting lock
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
Electrical Connection: Input, Connection Type
2x plug
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection: Outlet, Connection Type
cable
Max. Suction Volume Flow Rate Against Atmosphere
4
Noise Level For Nominal Operating Pressure (dB(A))
64
Electrical Connection: Input, Connection Technology
Wiring diagram H
Electrical Connection: Input, Number Of Pins / Wires
2
Electrical Connection: Outlet, Connection Technology
Open end
Electrical Connection: Outlet, Number Of Pins / Wires
3
Operating Pressure For Max. Suction Volume Flow (MPa)
0,3
Air Supply Time At Nominal Operating Pressure With Ejector Pulse (s)
2
