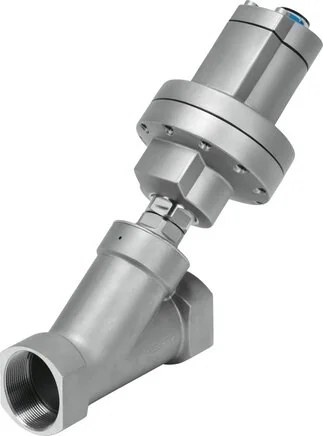

Festo - 8060549 - Angle Seat Valve

SKU: festo-8060549

Browse all parts
Festo - 8060549 - Angle Seat Valve

€1,055.84€902.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,055.84

Brand
Festo
Medium
neutrale Flüssigkeiten
Flow Kv
33,1
Permission
CRN
Reset Mode
Mechanical spring
Outdoor Use
wettergeschützte Einsatzorte Klasse C1 in Anlehnung an IEC 60654-1
Stroke (mm)
26
Control Type
Remote controlled
Material Note
RoHs compliant
Actuation Type
pneumatic
Cover Material
Cast stainless steel
Fastening Type
pipe installation
Flow Direction
Not reversible
Lower valve seat, for gas and liquid media
Max. Viscosity
600
Seals Material
NBR
Line Connection
Gewindemuffe 1 1/4 NPT nach ANSI/ASME B 1.20.1
Control Function
Closed due to spring force, NC
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Certification Body
TÜV 968/V 1039.01/20
Position Detection
With Mechanical display
Construction Set Up
Poppet valve with diaphragm actuator
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP67
Material - Seal Seat
PTFE
Pneumatic Connection
female thread G1/8
Control Of The Medium
On/off mode
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 2.5
Spindle Seal Material
PTFE
LABS (PWIS) Conformity
VDMA24364-Zone III
Actuator Dimensions (mm)
90
Medium Temperature (°C)
-10 to 180
Operating Pressure (MPa)
0,5 to 0,7
Actuator Housing Material
Cast stainless steel
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
-10 to 60
Instrument Housing Material
Cast stainless steel
Safety Integrity Level (SIL)
SIL 2
Material Number Actuator Housing
14.408
Material Number Instrument Housing
ASTM A351-CF3M
Probability Of Failure Per Hour (PFH)
0.000000136
Probability Of Failure On Demand (PFD)
0.000595
EAN
4052568435837
Manufacturer
Festo
