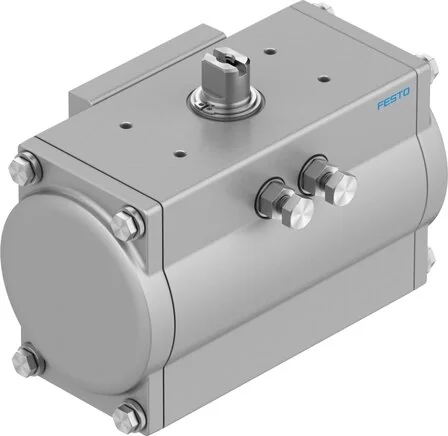

Festo - 8066418 - Swivel Drive

SKU: festo-8066418

Browse all parts
Festo - 8066418 - Swivel Drive

€510.52€436.34 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€510.52

Brand
Festo
Lug Material
High-alloyed stainless steels
Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Seals Material
NBR
Shaft Material
High-alloyed stainless steels
Piston Material
Aluminium die casting
Safety Function
Die Sicherheitsfunktion besteht darin, dass der Antrieb in die definierte Sicherheitsschaltstellung schaltet. Diese Schaltbewegung wird durch Belüftung der entsprechenden Druckkammer mit Druckluft erreicht. Der Wert des erzeugten Drehmoments hängt vo
Screws Material
High-alloyed stainless steels
Bearing Material
POM
Housing Material
Aluminium, pulverbeschichtet
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shaft Connection
T22
ATEX Gas Category
II 2G
Closing Direction
Right closing
Swivel Angle (°)
90
ATEX Dust Category
II 2D
Certification Body
TÜV Rheinland 968/V 1106.01/2023
Construction Set Up
Toothed rack/pinion
Burst Pressure (bar)
24,00
Pneumatic Connection
1/4 NPT
Installation Position
arbitrary
Ex Ambient Temperature
-20°C <= Ta <= +80°C
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Flange Drilling Pattern
F0710
Maritime Classification
see Certificate
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
-20 to 80
Bearing Temperature (°C)
-20 to 60
Connection Plate Material
Aluminium-Knetlegierung, beschichtet
Position Drive Dimensions
160
Shaft Connection Depth (mm)
24
Safety Integrity Level (SIL)
bis SIL 1 High Demand mode
Standard Connection To Fitting
ISO 5211
Ex Ignition Protection Type Gas
Ex h IIC T4 Gb X
Ex Ignition Protection Type Dust
Ex h IIIC T105°C Db X
Nominal Operating Pressure (MPa)
0,55
Device Type According To VDMA 66413
Sicherheitsbauteil
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
Valve Connection Corresponds To Standard
VDI/VDE 3845 (NAMUR)
Adjustable Range End Position At 0° (°)
-5 to 5
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
End-position Adjustment Range At Nominal Swivel Angle (°)
-5 to 5
Certified For Safety Function To ISO 13849 And IEC 61508 (SIL)
bis SIL 3 in einer redundanten Architektur
Rotary Torque For Nominal Operating Pressure And 0° Pivot Angle (Nm)
161
Rotary Torque For Nominal Operating Pressure And 90° Pivot Angle (Nm)
161
Connection Point For Positioner And Position Sensor Conforms To Standard
VDI/VDE 3845 Size AA 1
Air Consumption At 0.6 MPa (6 bar, 87 psi) Per Cycle 0°-nominal Swivel Angle-0° (l)
14
EAN
4052568443733
Manufacturer
Festo
