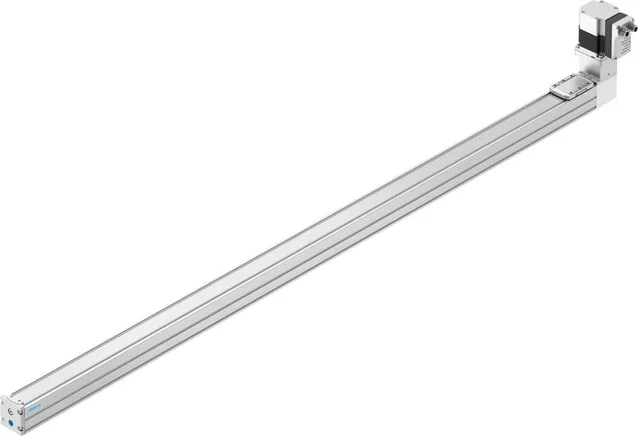

Festo - 8083671 - Toothed Belt Axis Unit

SKU: festo-8083671

Browse all parts
Festo - 8083671 - Toothed Belt Axis Unit

€1,779.15€1,520.64 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,779.15

Brand
Festo
Size
45
Guide
ball guide
Display
LED
KC-mark
KC-EMV
Motor Type
Step motor
Permission
RCM mark
Referencing
Festanschlag-Block negativ
Feed Constant
60
Material Note
RoHs compliant
Power-on Time
100%
Fastening Type
With Accessories
V-belt Bending
0,187
Moving Mass (g)
169
V-belt Material
Polychloroprene with glass fibre
Max. Line Length
20 m bei IO-Link Betrieb
Max. Speed (m/s)
1,2
Profile Material
Aluminium-Knetlegierung, eloxiert
Protection Class
III
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Carriage Material
Aluminium die casting
Max. Acceleration
6
Max. Force Fy (N)
880
Max. Force Fz (N)
880
Relative Humidity
0 - 90 %
Position Detection
For proximity switch
Repeatability (mm)
±0.1
Carriage Weight (g)
55
Construction Set Up
mit integriertem Antrieb
IO-Link, Port Class
A
Max. Torque Mx (Nm)
5,5
Max. Torque My (Nm)
4,7
Max. Torque Mz (Nm)
4,7
Nominal Current (A)
5,3
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
1200
Additional Functions
Integrierte Endlagenerkennung
Belt Pulley Material
High-alloyed stainless steels
Maintenance Interval
Lifetime lubrication
Max. Power Input (A)
5300
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Installation Position
Horizontal
Masking Tape Material
Rust-free stainless steel band
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
75
Nominal Voltage DC (V)
24
Switching Logic Inputs
PNP (Positive switching)
Temperature Monitoring
Integrierter präziser CMOS-Temperatursensor mit analogem Ausgang
V-belt Separation (mm)
2
Actuator Cover Material
Aluminium-Druckguss, lackiert
Guide Carriage Material
Quenched and tempered steel
Properties Logic Inputs
Not galvanically separated
Switching Logic Outputs
PNP (Positive switching)
IO-Link, Number Of Ports
1
Parameterising Interface
Bedienoberfläche
Second Moment Of Area Iy
140.000
Second Moment Of Area Iz
170.000
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
60
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Logic Input Specification
in Anlehnung an IEC 61131-2, Typ 1
Rotor Position Transducer
Encoder absolut single turn
Speed "Speed Press" (m/s)
0,024
Work Area Logic Input (V)
24
Max. Power Input Logic (A)
0,3
IO-Link, Communication Mode
COM3 (230.4 kBaud)
IO-Link, Data Memory Needed
500
Insulation Protection Class
B
Operation-readiness Display
LED
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
300
Max. Force Fz Total Axis (N)
600
IO-Link, Service Data Unit IN
32 bit Speed
Logic Interface, Plug Pattern
992264
Quantity Digital Logic Inputs
2
IO-Link, Connection Technology
Plug
IO-Link, Process Data Width IN
2 Bytes
Max. Moment Mx Total Axis (Nm)
5,5
Max. Moment My Total Axis (Nm)
4,7
Max. Moment Mz Total Axis (Nm)
4,7
Moving Mass At 0 mm Stroke (g)
169
Permitted Voltage Oscillations
± 15 %
Torsional Moment Of Inertia To
8.500
IO-Link, Process Data Width OUT
2 Bytes
Voltage Supply, Connection Type
Plug
IO-Link, Minimum Cycle Time (ms)
1
Logic Interface, Connection Type
Plug
Power Supply, Connection Pattern
995989
Properties Digital Logic Outputs
Not galvanically separated
IO-Link, Process Data Contents IN
State Out 1 bit
IO-Link, Process Data Contents OUT
Move Intermediate 1 bit
Static Bending (Load At Standstill)
0.1 % of the axis length
Logic Interface, Number Of Pins/wires
8
Voltage Supply, Connection Technology
M12x1, T-codiert nach EN 61076-2-111
Voltage Supply, Number Of Poles/wires
4
Logic Interface, Connection Technology
M12x1 A coded to EN 61076-2-101
Quantity Digital Logic Outputs 24 V DC
2
Actuator Pinion Effective Diameter (mm)
19,10
Max. Current Digital Logic Outputs (mA)
100
Rotor Position Transducer Resolution (Bit)
16
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Reference Value Effective Load, Horizontal (kg)
2,5
Rotor Position Transducer Measurement Principle
Magnetic
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
20
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
EAN
4052568458577
Manufacturer
Festo
