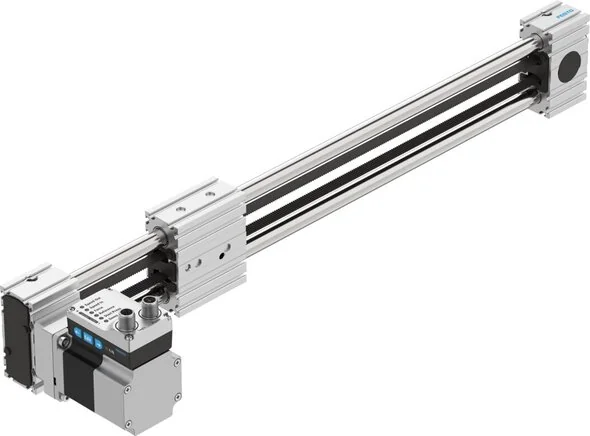

Festo - 8083935 - Toothed Belt Axis Unit

SKU: festo-8083935

Browse all parts
Festo - 8083935 - Toothed Belt Axis Unit

€1,533.72€1,310.87 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,533.72

Brand
Festo
Size
35
Guide
ball guide
Display
LED
KC-mark
KC-EMV
Motor Type
Step motor
Permission
RCM mark
Referencing
Festanschlag-Block negativ
Feed Constant
58
Material Note
RoHs compliant
Power-on Time
100%
Fastening Type
Profilbefestigung
V-belt Bending
0,094
V-belt Material
Polychloroprene with glas cord and nylon covering
Max. Line Length
20 m bei IO-Link Betrieb
Max. Speed (m/s)
1,2
Profile Material
Aluminium-Knetlegierung, eloxiert
Protection Class
III
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Carriage Material
Aluminium-Knetlegierung, eloxiert
Max. Acceleration
8,5
Max. Force Fy (N)
50
Max. Force Fz (N)
50
Relative Humidity
0 - 90 %
Position Detection
For proximity switch
Repeatability (mm)
±0.1
Construction Set Up
mit integriertem Antrieb
IO-Link, Port Class
A
Max. Torque Mx (Nm)
2,5
Max. Torque My (Nm)
8
Max. Torque Mz (Nm)
8
Nominal Current (A)
5,3
Protection Category
IP20
Working Stroke (mm)
500
Additional Functions
Integrierte Endlagenerkennung
Belt Pulley Material
High-alloyed stainless steels
Maintenance Interval
Lifetime lubrication
Max. Power Input (A)
5300
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
Horizontal
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
50
Nominal Voltage DC (V)
24
Switching Logic Inputs
PNP (Positive switching)
Temperature Monitoring
Integrierter präziser CMOS-Temperatursensor mit analogem Ausgang
V-belt Separation (mm)
2
Actuator Cover Material
Aluminium-Knetlegierung, eloxiert
Properties Logic Inputs
Not galvanically separated
Switching Logic Outputs
PNP (Positive switching)
IO-Link, Number Of Ports
Device 1
Parameterising Interface
Bedienoberfläche
Second Moment Of Area Iy
3.770
Second Moment Of Area Iz
4.190
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 60
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Logic Input Specification
in Anlehnung an IEC 61131-2, Typ 1
Rotor Position Transducer
Encoder absolut single turn
Speed "Speed Press" (m/s)
0,024
Work Area Logic Input (V)
24
Max. Power Input Logic (A)
0,3
IO-Link, Communication Mode
COM3 (230.4 kBaud)
IO-Link, Data Memory Needed
500
Insulation Protection Class
B
Operation-readiness Display
LED
Reference Service Life (km)
5000
IO-Link, Service Data Unit IN
32 bit Speed
Logic Interface, Plug Pattern
992264
Quantity Digital Logic Inputs
2
V-belt Clamping Body Material
Beryllium bronze
IO-Link, Connection Technology
Plug
IO-Link, Process Data Width IN
2 Bytes
Permitted Voltage Oscillations
± 15 %
IO-Link, Process Data Width OUT
2 Bytes
Voltage Supply, Connection Type
Plug
IO-Link, Minimum Cycle Time (ms)
1
Logic Interface, Connection Type
Plug
Power Supply, Connection Pattern
995989
Properties Digital Logic Outputs
Not galvanically separated
IO-Link, Process Data Contents IN
State Out 1 bit
IO-Link, Process Data Contents OUT
Move Intermediate 1 bit
Logic Interface, Number Of Pins/wires
8
Voltage Supply, Connection Technology
M12x1, T-codiert nach EN 61076-2-111
Voltage Supply, Number Of Poles/wires
4
Logic Interface, Connection Technology
M12x1 A coded to EN 61076-2-101
Quantity Digital Logic Outputs 24 V DC
2
Actuator Pinion Effective Diameter (mm)
18,46
Max. Current Digital Logic Outputs (mA)
100
Rotor Position Transducer Resolution (Bit)
16
Supplement Moved Mass Per 10 mm Stroke (g)
0,31
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Reference Value Effective Load, Horizontal (kg)
2,8
Rotor Position Transducer Measurement Principle
Magnetic
EAN
4052568458188
Manufacturer
Festo
