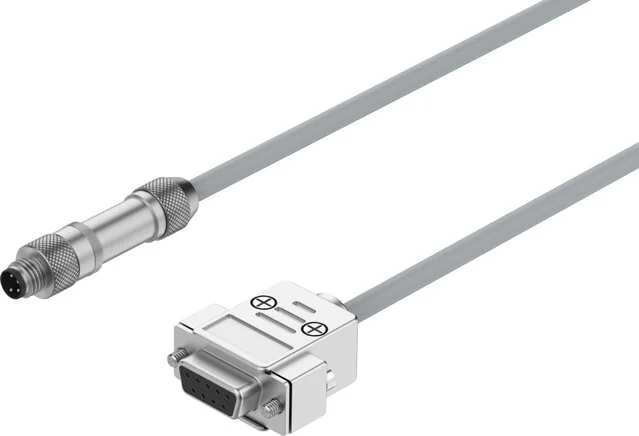

Festo - 8099218 - Connection Line

SKU: festo-8099218

Festo - 8099218 - Connection Line

€140.00€119.66 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€140.00

Brand
Festo
Report
RS232
Shielding
yes
Cable Set Up
3 x 0,34 mm²
Material Note
RoHs compliant
Line Properties
energiekettentauglich
Cable Length (m)
1,5
Line Designation
With Accessories
Cable Diameter (mm)
4,6
Cable Shield Colour
black
Protection Category
IP67
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Degree Of Contamination
2
Tolerance Cable Diameter
± 0,1 mm
Ambient Temperature (°C)
0 to 50
Surge Voltage Strength (kV)
1,5
Operating Voltage Range DC (V)
0 to 24
Electrical Connection 1, Design
round
Electrical Connection 2, Design
Angular
Nominal Operating Voltage DC (V)
24
Conductor - Nominal Cross-section
0,34
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
4
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 2, Fastening Type
2x screw 4-40 UNC
Electrical Connection 1, Connection Type
Plug
Electrical Connection 2, Connection Type
socket / container / ….
Bending Radius, Moving Cable Placement (mm)
47
Electrical Connection 1, Connection Pattern
995708
Electrical Connection 2, Connection Pattern
995638
Electrical Connection 1, Occupied Pin / Wire
3
Electrical Connection 2, Occupied Pin / Wire
8
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
24
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 2, Connection Technology
Sub-D
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 2, Number Of Pins / Wires
9
Ambient Temperature For Moving Cable Placements (°C)
0 to 50
EAN
4052568458614
Manufacturer
Festo
