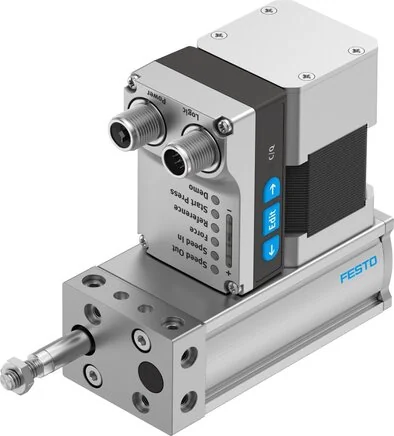

Festo - 8101545 - Electric Cylinder Unit

SKU: festo-8101545

Browse all parts
Festo - 8101545 - Electric Cylinder Unit

€853.53€729.51 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€853.53

Brand
Festo
Size
45
Display
LED
KC-mark
KC-EMV
Motor Type
Step motor
Permission
RCM mark
Referencing
Festanschlag-Block negativ
Stroke (mm)
30
Feed Constant
32
Material Note
RoHs compliant
Power-on Time
100%
Cover Material
Aluminium-Knetlegierung, eloxiert
Fastening Type
With Accessories
Piston Rod End
Male thread
V-belt Bending
0,310
Moving Mass (g)
101
V-belt Material
Polychloroprene with glass fibre
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Line Length
20 m bei IO-Link Betrieb
Max. Speed (m/s)
0,44
Protection Class
III
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Max. Acceleration
9
Piston Rod Thread
M6
Relative Humidity
0 - 90 %
Position Detection
Motorencoder
Repeatability (mm)
±0.05
Construction Set Up
mit integriertem Antrieb
IO-Link, Port Class
A
Max. Torque Mx (Nm)
0
Max. Torque My (Nm)
0,4
Max. Torque Mz (Nm)
0,4
Nominal Current (A)
3
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Stroke Reserve (mm)
0
Additional Functions
Integrierte Endlagenerkennung
Maintenance Interval
Lifetime lubrication
Max. Power Input (A)
3000
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
85
Nominal Voltage DC (V)
24
Switching Logic Inputs
PNP (Positive switching)
Temperature Monitoring
Integrierter präziser CMOS-Temperatursensor mit analogem Ausgang
V-belt Separation (mm)
2
Anti-twist Lock / Guide
Slide guided
Properties Logic Inputs
Not galvanically separated
Switching Logic Outputs
PNP (Positive switching)
IO-Link, Number Of Ports
1
Parameterising Interface
Bedienoberfläche
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 60
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Logic Input Specification
in Anlehnung an IEC 61131-2, Typ 1
Rotor Position Transducer
Encoder absolut single turn
Speed "Speed Press" (m/s)
0,02
Work Area Logic Input (V)
24
IO-Link, Communication Mode
COM3 (230.4 kBaud)
IO-Link, Data Memory Needed
500
Insulation Protection Class
B
Max. Power Input Logic (mA)
0,3
Operation-readiness Display
LED
Reference Service Life (km)
300
IO-Link, Service Data Unit IN
Force 32 bit
Logic Interface, Plug Pattern
992264
Quantity Digital Logic Inputs
2
Base Weight At 0 mm Stroke (g)
813
Corrosion Resistance Class KBK
0 - No corrosion stressing
IO-Link, Connection Technology
Plug
IO-Link, Process Data Width IN
2 Bytes
Moving Mass At 0 mm Stroke (g)
87
Permitted Voltage Oscillations
± 15 %
IO-Link, Process Data Width OUT
2 Bytes
Voltage Supply, Connection Type
Plug
IO-Link, Minimum Cycle Time (ms)
1
Logic Interface, Connection Type
Plug
Power Supply, Connection Pattern
995989
Properties Digital Logic Outputs
Not galvanically separated
IO-Link, Process Data Contents IN
State Out 1 bit
IO-Link, Process Data Contents OUT
Move Intermediate 1 bit
Logic Interface, Number Of Pins/wires
8
Voltage Supply, Connection Technology
M12x1, T-codiert nach EN 61076-2-111
Voltage Supply, Number Of Poles/wires
4
Impact Energy At The End Positions (J)
0,003
Logic Interface, Connection Technology
M12x1 A coded to EN 61076-2-101
Quantity Digital Logic Outputs 24 V DC
2
Weight Supplement Per 10 mm Stroke (g)
29
Actuator Pinion Effective Diameter (mm)
10,18
Max. Current Digital Logic Outputs (mA)
100
Rotor Position Transducer Resolution (Bit)
16
Supplement Moved Mass Per 10 mm Stroke (g)
4,55
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Reference Value Effective Load, Vertical (kg)
2,5
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Reference Value Effective Load, Horizontal (kg)
5
Rotor Position Transducer Measurement Principle
Magnetic
EAN
4052568551711
Manufacturer
Festo
