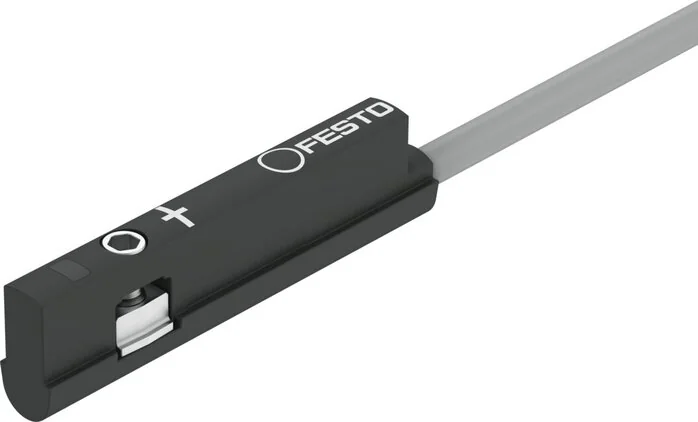

Festo - 8128405 - Position Transmitter

SKU: festo-8128405

Festo - 8128405 - Position Transmitter

€121.15€103.55 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€121.15

Brand
Festo
Design
For round nut
Report
IO-Link
Permission
RCM mark
Material Note
halogenfrei
Control Output
2x PNP or 2x NPN adjustable
Fastening Type
längs in Nut einschiebbar
Status Display
LED red
Line Properties
energiekettentauglich/ robotertauglich
Residual Ripple
10%
Setting Options
kapazitive Taste
Cable Length (m)
2,5
Housing Material
High-alloyed stainless steels
Voltage Drop (V)
0,4
IO-Link, Port Type
Class A
Measured Parameter
Position
Overload Resistant
Available
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP68
Switch On Time (ms)
3
IO-Link, Revision ID
V1.1
Recording Range (mm)
35000
Switch Off Time (ms)
3
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 28 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Hall magnetic
Empty Run Current (mA)
19
LABS (PWIS) Conformity
VDMA24364-B2-L
Resolution Travel (mm)
0,012
IO-Link, Device Profile
Smart Sensor - SSP 4.1.1
Max. Output Current (mA)
50
Short Circuit Resistance
yes
Ambient Temperature (°C)
-40 to 80
IO-Link, SIO Mode Support
yes
Max. Movement Speed (m/s)
4
IO-Link, Transmission Rate
COM2
Switching Element Function
Opener/closer switchable
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
yes
Sampling Interval Type (ms)
2
Typical Linearity Error (mm)
±2
Max. Switching Frequency (Hz)
166
Max. Switch Off Voltage DC (V)
30
Max. Switching Capacity DC (W)
1,5
Operating Voltage Range DC (V)
10 to 30
IO-Link, Minimum Cycle Time (ms)
3
IO-Link, Process Data Contents IN
Überwachung 4 bit SSC
Electrical Connection 1, Connection Type
cable
IO-Link, Process Data Length Input (Bit)
32
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
4
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568627485
Manufacturer
Festo
