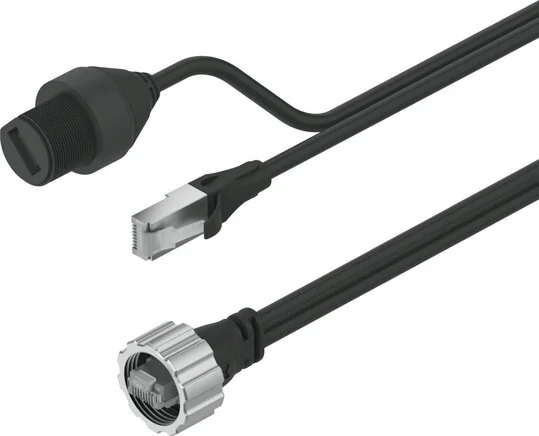

Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Housing Colour
transparent
Line Properties
For static applications
Line Designation
Without sign holder
Relative Humidity
Not condensing
Certification Body
UL E239998
Screw Lock Material
High-alloyed stainless steels
Transfer Properties
Entsprechend Kategorie 5, ISO/IEC 11801, Klasse D
Complies To Standard
IEC 60603-7-3
Cable Diameter 2 (mm)
4,50
LABS (PWIS) Conformity
VDMA24364-Zone III
Plug Contacts Material
brass, Nickel and gold plated
Ambient Temperature (°C)
-20 to 55
Bearing Temperature (°C)
-20 to 70
Insulation Sleeve Material
PVC
Tolerance, Cable Diameter 1
± 0,2 mm
Tolerance, Cable Diameter 2
± 0,2 mm
Corrosion Resistance Class KBK
(im eingebauten Zustand)
Operating Voltage Range DC (V)
0 to 60
Electrical Connection 1, Design
Angular
Electrical Connection 2, Design
Angular
Electrical Connection 3, Design
Angular
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 3, Function
Control screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Electrical Connection 3, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
1
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 2, Fastening Type
Ratcheting lock
Electrical Connection 1, Connection Type
Plug
Electrical Connection 2, Connection Type
Plug
Electrical Connection 3, Connection Type
socket / container / ….
Electrical Connection 2, Connection Pattern
995653
Electrical Connection 1, Occupied Pin / Wire
12
Electrical Connection 2, Occupied Pin / Wire
8
Electrical Connection 3, Occupied Pin / Wire
4
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
30
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
RJ45
Electrical Connection 2, Connection Technology
RJ45
Electrical Connection 3, Connection Technology
USB 2.0 Typ B
Electrical Connection 1, Number Of Pins / Wires
12
Electrical Connection 2, Number Of Pins / Wires
8
Electrical Connection 3, Number Of Pins / Wires
4
