Festo - 8175819 - Filter Regulating Valve

SKU: festo-8175819

Browse all parts

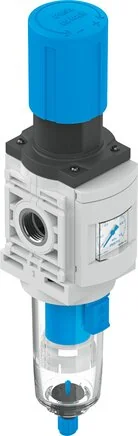

Festo - 8175819 - Filter Regulating Valve

€156.89€134.09 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€156.89

Brand
Festo
Size
6
Pore Size
40
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
PC
Filter Material
PE
Filter Porosity
40
Spring Material
High-alloyed stainless steels
Condensate Drain
Manually rotating
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Construction Set Up
Directly controlled piston control valve
Controller Function
mit Rückstromverhalten
Presentable Unit(s)
MPa
Installation Position
vertical ± 5°
Valve Tappet Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Rotary Button Material
POM
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
50
Max. Condensate Amount (ml)
27,3
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion Resistance Class KBK
1 - low corrosion stress
Degree Of Condensate Discharge
75
Max. Pressure Hysteresis (MPa)
0,035
Pressure Regulation Range (bar)
0.3 to 7
Note On Operating And Control Medium
Verträglichkeit mit Esteröl nicht gegeben
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Standard Nominal Flow Rate (Standardised To DIN 1343)
5300
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568613143
Manufacturer
Festo
