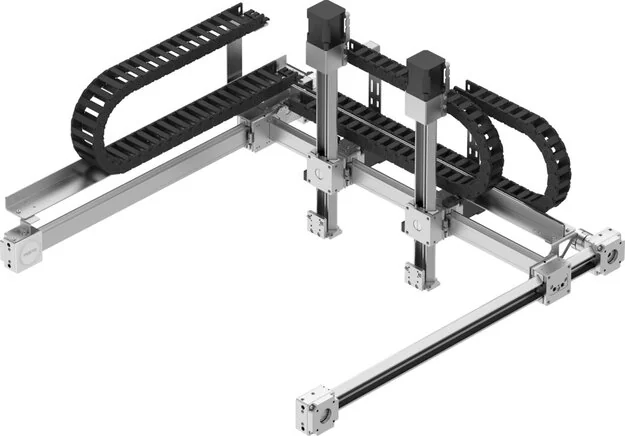

Festo - 8184925 - Space Portal

SKU: festo-8184925

Festo - 8184925 - Space Portal

€4,492.33€3,839.60 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,492.33

Brand
Festo
Size
15
Display
LED green / yellow / red
KC-mark
KC-EMV
Motor Type
Step motor
Material Note
RoHs compliant
Position Mode
Position direkt übergeben
Power-on Time
100%
Fastening Type
mit Innengewinde M3
Operating Mode
Microstep, >4000 steps/rotation
Max. Speed (m/s)
0,5
Position Control
yes
Process Coupling
Drives with Positioning Function
Max. Acceleration
1
Relative Humidity
0 - 90 %
Repeatability (mm)
±0.1
Construction Set Up
Raumportalsystem
Protection Category
IP10
Protection Function
Softwareendlagenerkennung
Installation Position
Horizontal
Type Of Interpolation
Linearinterpolation
LABS (PWIS) Conformity
VDMA24364-Zone III
Nominal Current Setting
Via software
Parameterising Interface
Ethernet
Ambient Temperature (°C)
10 to 40
Bearing Temperature (°C)
-10 to 60
Holding Torque Motor (Nm)
0,5 to 1,4
Operating Mode Controller
gesteuerter Betrieb
Stroke Of The X-axis (mm)
200
Stroke Of The Y-axis (mm)
300
Nominal Current X-axis (A)
4,2
Nominal Current Y-axis (A)
2
Nominal Current Z-axis (A)
2
Nominal Voltage X-axis (V)
1,68
Nominal Voltage Y-axis (V)
3,2
Nominal Voltage Z-axis (V)
3,2
Adjustable Current Lowering
Via software
Feed Constant Of The X-axis
64
Feed Constant Of The Y-axis
37,7
Feed Constant Of The Z-axis
5
Stroke Of The Z-axis 1 (mm)
100
Ethernet Supported Protocols
TCP/IP
Sound Pressure Level (dB(A))
65,8
Max. Creep Speed X-axis (m/s)
0,003
Max. Creep Speed Y-axis (m/s)
0,003
Max. Creep Speed Z-axis (m/s)
0,003
Permitted Range Logic Voltage
± 10 %
Communication Interface, Logic
Ethernet - TCP/IP
Max. Search Speed X-axis (m/s)
0,03
Max. Search Speed Z-axis (m/s)
0,015
Nominal Voltage Load Supply DC (V)
24
Nominal Voltage Logic Supply DC (V)
5
Max. Process Force In Z Direction (N)
15
Max. Search Speed Velocity Y-axis (m/s)
0,03
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
EAN
4052568630898
Manufacturer
Festo
