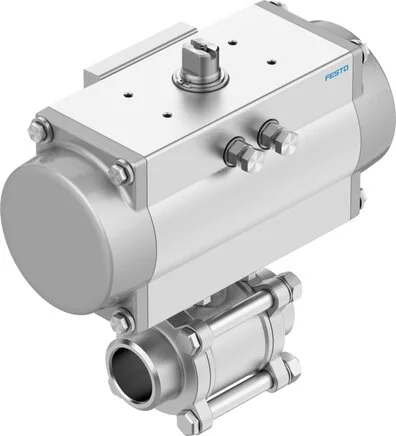

Festo - 8191842 - Ball Valve Unit

SKU: festo-8191842

Browse all parts
Festo - 8191842 - Ball Valve Unit

€1,500.84€1,282.77 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,500.84

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
507
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE-verstärkt
Shaft Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Nominal Width DN
65
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Weld ends / weld ends
Construction Set Up
Schwenkantrieb
Nominal Pressure PN
63
Material - Seal Seat
PTFE
Material Number Ball
14.408
Installation Position
arbitrary
Material Number Shaft
14.401
Ex Ambient Temperature
-10°C <= Ta <= +80°C
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F0710
Material Number Housing
14.408
Explosion Group Assembly
IIC, IIIC
Medium Temperature (°C)
-10 to 200
Operating Pressure (MPa)
0,55 to 0,8
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Surface Temperature Assembly
T4...T2
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
78
EAN
4052568715021
Manufacturer
Festo
