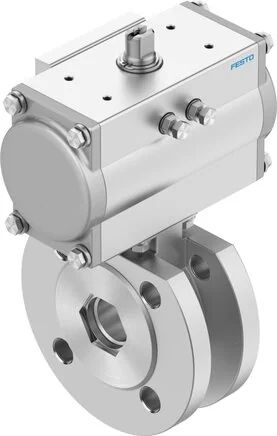

Festo - 8191879 - Ball Valve Unit

SKU: festo-8191879

Browse all parts
Festo - 8191879 - Ball Valve Unit

€699.34€597.73 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€699.34

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
71,5
Ball Material
High-alloyed stainless steels
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
pipe installation
Flow Direction
Reversible
Seals Material
PTFE-verstärkt
Shaft Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Nominal Width DN
25
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 5211
Sealing Principle
Soft
Fitting Connection
Flansch nach EN 1092-1
Construction Set Up
Schwenkantrieb
Nominal Pressure PN
40
Material - Seal Seat
PTFE
Material Number Ball
14.408
Installation Position
arbitrary
Material Number Shaft
14.401
Ex Ambient Temperature
-10°C <= Ta <= +80°C
LABS (PWIS) Conformity
VDMA24364-Zone III
Flange Drilling Pattern
F0405
Material Number Housing
14.408
Explosion Group Assembly
IIC, IIIC
Medium Temperature (°C)
-10 to 200
Operating Pressure (MPa)
0,55 to 0,8
Switching Position Display
Carriage direction = flow direction
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Surface Temperature Assembly
T4...T2
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Break-out Torque At A Pressure Difference Nominal Fitting Pressure PN (Nm)
17
EAN
4052568715403
Manufacturer
Festo
