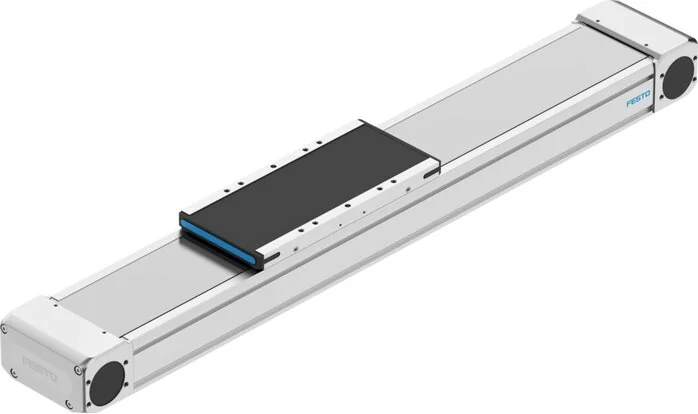

Festo - 8192389 - Toothed Belt Axis

SKU: festo-8192389

Browse all parts
Festo - 8192389 - Toothed Belt Axis

€2,929.49€2,503.84 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,929.49

Brand
Festo
Size
120
Guide
ball guide
Motor Type
Servo motor
Feed Constant
120
Material Note
RoHs compliant
Power-on Time
100%
Mass Inertia JO
9,1687
Moving Mass (g)
1957
V-belt Material
Polyurethan mit Stahlcord
Max. Speed (m/s)
3
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium wrought alloy
Max. Acceleration
50
Max. Force Fy (N)
8000
Max. Force Fz (N)
7200
Position Detection
For inductive sensors
Repeatability (mm)
±0,04
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
330
Max. Torque My (Nm)
600
Max. Torque Mz (Nm)
540
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
1000
Belt Pulley Material
High-alloyed stainless steels
Maintenance Interval
Lifetime lubrication
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Closing Cover Material
Aluminium-Kokillenguss, lackiert
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Feed Force Fx (N)
500
V-belt Separation (mm)
5
Actuator Cover Material
Aluminium-Kokillenguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
N48
Second Moment Of Area Iy
770.000
Second Moment Of Area Iz
5.801.000
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
60
Max. Actuator Torque (Nm)
9,55
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
5914
Max. Force Fz Total Axis (N)
5280
Base Weight At 0 mm Stroke (g)
6495
Empty Run Actuator Torque (Nm)
1,38
Max. Moment Mx Total Axis (Nm)
290
Max. Moment My Total Axis (Nm)
563
Max. Moment Mz Total Axis (Nm)
527
Torsional Moment Of Inertia To
383.100
Mass Inertia JH Per Metre Stroke
0,876
Mass Inertia JL Per kg Usable Load
3,648
Max. Empty Run Shift Resistance (N)
72,1
Static Bending (Load At Standstill)
0.1 % of the axis length
Impact Energy At The End Positions (J)
0,001
Weight Supplement Per 10 mm Stroke (g)
78
Actuator Pinion Effective Diameter (mm)
38,20
Measurement Principle Travel Measurement System
Incremental
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
51
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
35153
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
35153
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1459
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1920
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
1920
EAN
4052568776107
Manufacturer
Festo
