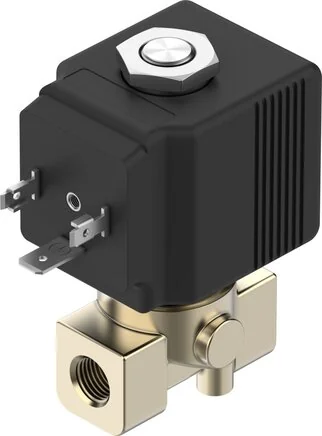

Festo - 8214568 - Solenoid Valve

SKU: festo-8214568

Browse all parts
Festo - 8214568 - Solenoid Valve

€161.66€138.17 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€161.66

Brand
Festo
Medium
weitere Durchflussmedien auf Anfrage
Flow Kv
0,36
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
pipe installation
Flow Direction
Not reversible
Max. Viscosity
25
Seals Material
FPM
Valve Function
2/2 closed monostable
Housing Material
High-alloyed stainless steels
Sealing Principle
Soft
Fitting Connection
G1/8
Nominal Width (mm)
4
Construction Set Up
Directly controlled poppet valve
Protection Category
IP65
Electrical Connection
viereckige Bauform
Hand Assist Actuation
None
Installation Position
arbitrary
Medium Pressure (MPa)
0 to 1.5
Shifting Time On (ms)
8
Shifting Time Off (ms)
25
Material Number Housing
14.305
Medium Temperature (°C)
-10 to 140
Ambient Temperature (°C)
-10 to 80
Coil Characteristic Value
24 V DC: 27,0 W
Insulation Material Class
H
Pressure Difference (MPa)
0
Corrosion Resistance Class KBK
3 - severe corrosion stress
Permitted Voltage Oscillations
± 10 %
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568788964
Manufacturer
Festo
