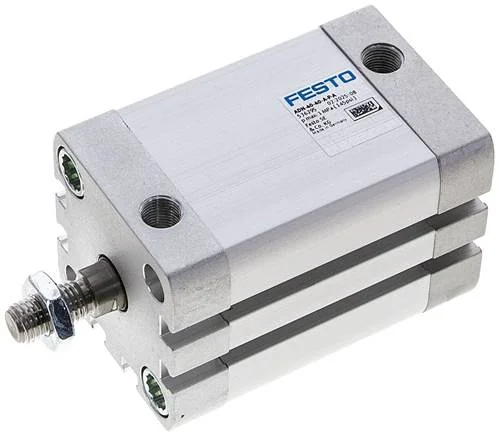

Festo - ADN-40-40-A-P-A-536295 - Compact Cylinder

SKU: festo-adn-40-40-a-p-a-536295

Browse all parts
Festo - ADN-40-40-A-P-A-536295 - Compact Cylinder

€139.45€119.19 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€139.45

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
40
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, eloxiert
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
40
Seals Material
TPE-U(PUR)
Moving Mass (g)
139
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M10x1,25
Position Detection
For proximity switch
Piston Rod Material
High-alloyed steel
Complies To Standard
ISO 21287
Pneumatic Connection
G1/8
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Steel
Principle Of Operation
double acting
Operating Pressure (MPa)
0,06 to 1
Ambient Temperature (°C)
80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,7
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
686
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
754
EAN
4052568171032
Manufacturer
Festo
