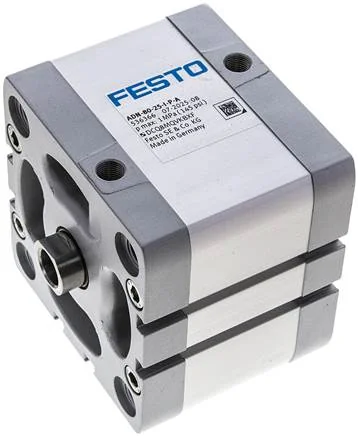

Festo - ADN-80-25-I-P-A-536366 - Compact Cylinder

SKU: festo-adn-80-25-i-p-a-536366

Browse all parts
Festo - ADN-80-25-I-P-A-536366 - Compact Cylinder

€235.47€201.26 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€235.47

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
25
Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Fastening Type
With Accessories
Piston Rod End
Female thread
Piston Ø (mm)
80
Seals Material
TPE-U(PUR)
Moving Mass (g)
347
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M12
Position Detection
For proximity switch
Piston Rod Material
High-alloyed steel
Complies To Standard
ISO 21287
Pneumatic Connection
G1/8
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Steel
Principle Of Operation
double acting
Operating Pressure (MPa)
0,06 to 1
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
1,8
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
2827
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
3016
EAN
4052568171575
Manufacturer
Festo
